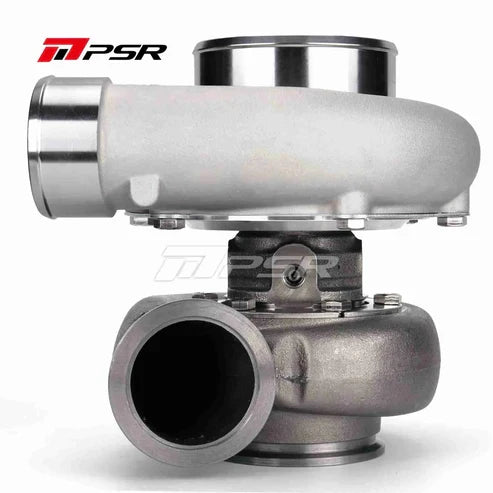

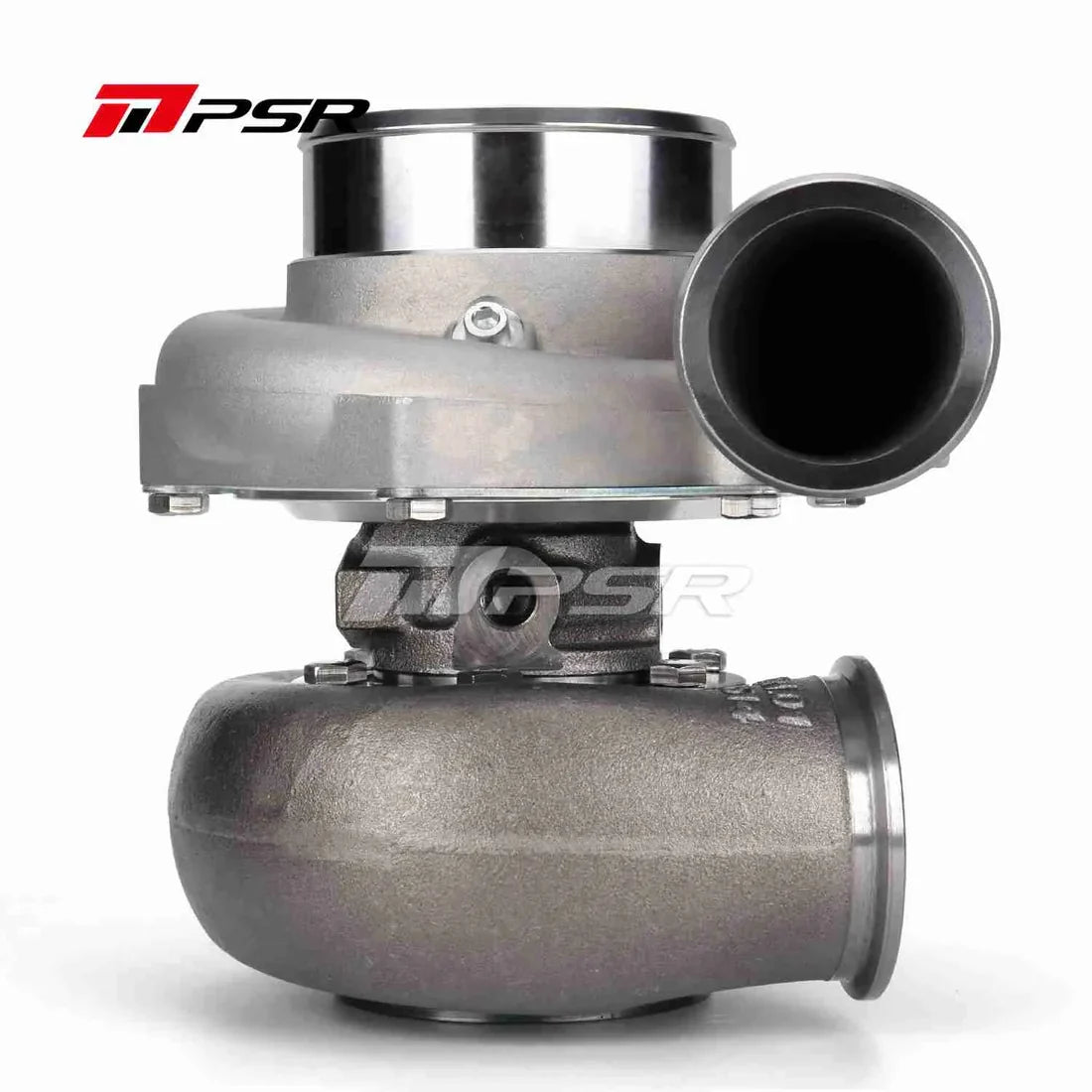

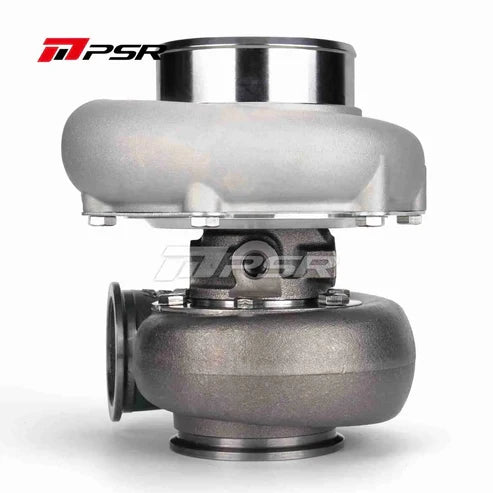

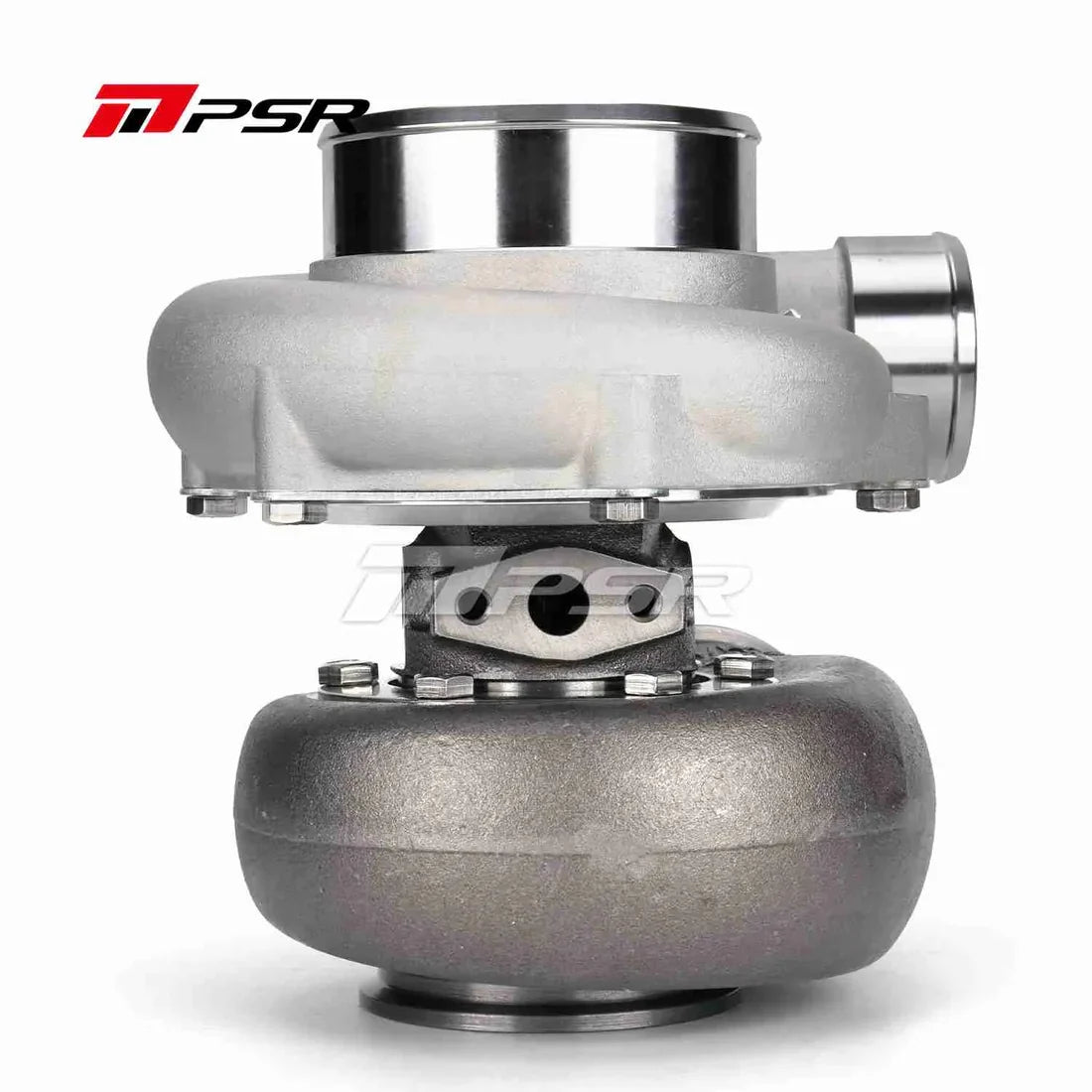

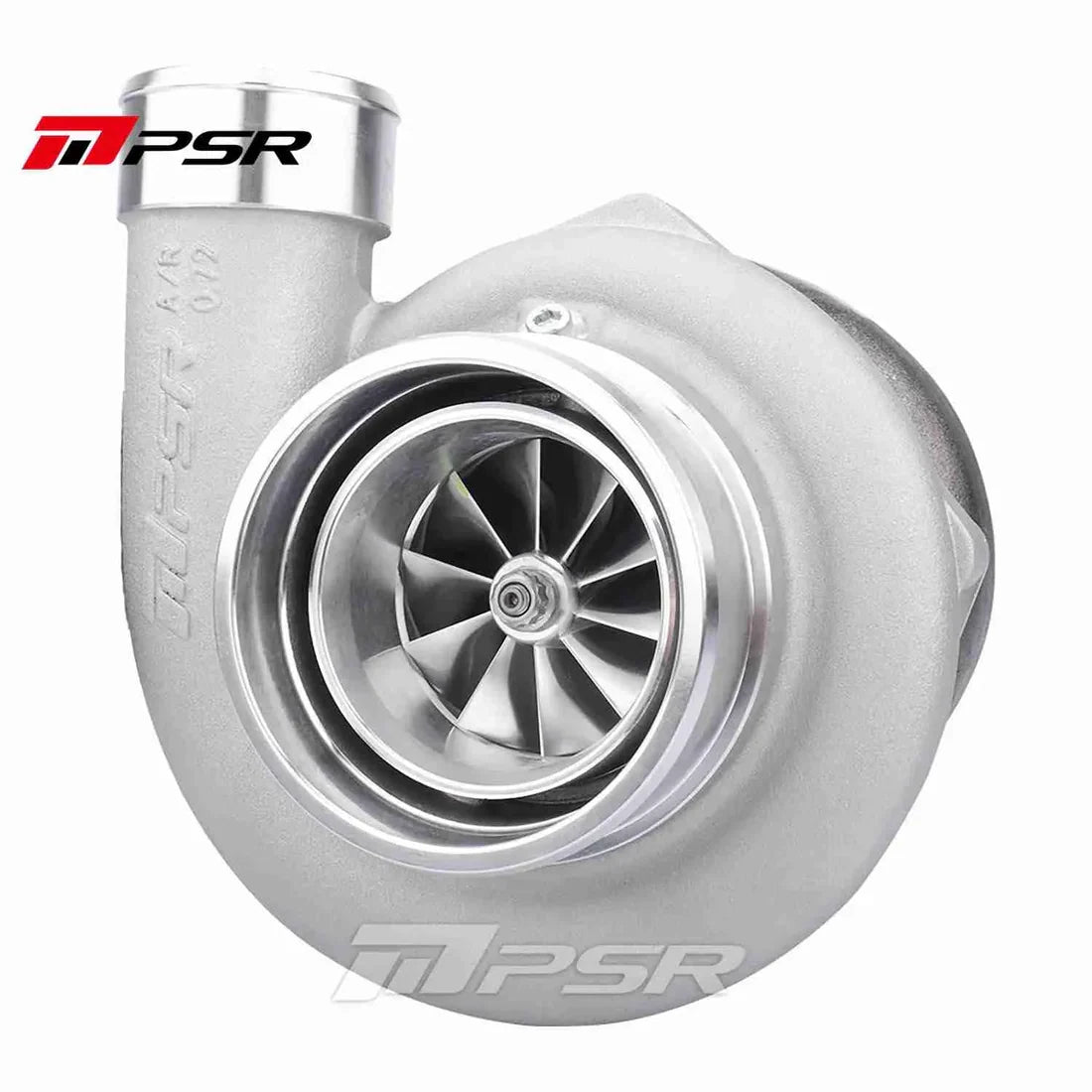

PSR3584 GEN3 TURBO comes with Larger Turbine Wheel for higher flow.
It has been tested and get more nearly 50 hp!
Features:
- Dual Ceramic Ball Bearing System

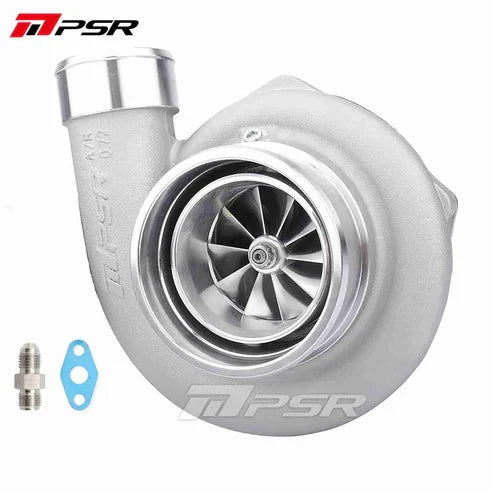

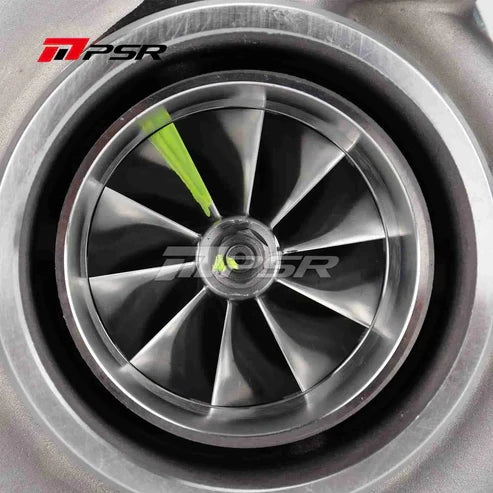

- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

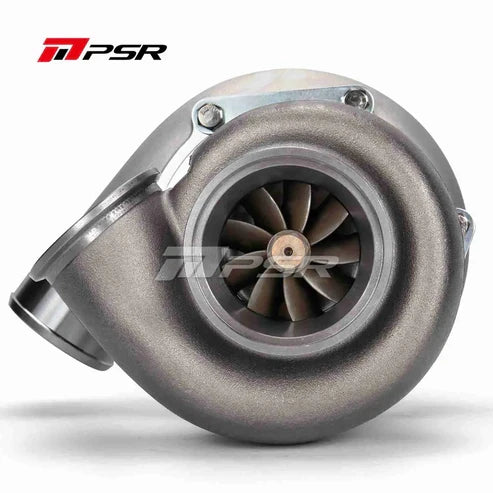

- Inconel 713c 10 Blade Turbine Wheel with High Horsepower

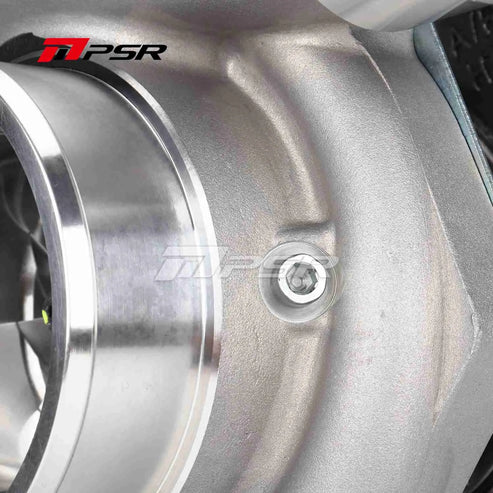

- Cover Integrated with the Speed Sensor Port
- 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings in option

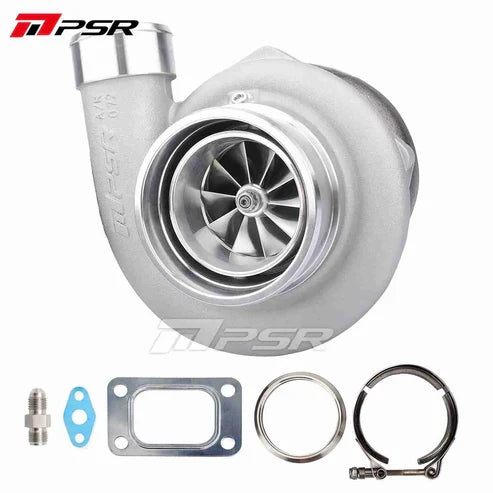

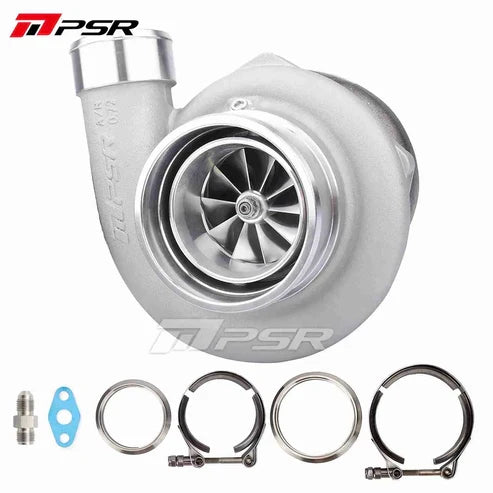

- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
- Larger Turbine Wheel for Higher flow
Details:
- Compressor Wheel: 67*84mm
- Larger Turbine Wheel: 74*66mm

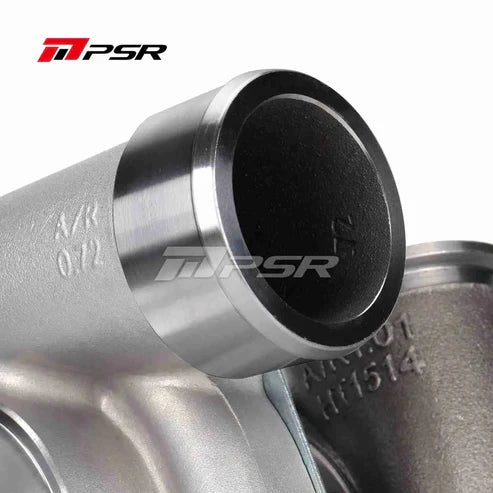

- Compressor Inlet: 4.0” Hose
- Compressor Outlet: 2.5” Hose
- Turbine Inlet: T3, T4, or 2.5″ V-Band

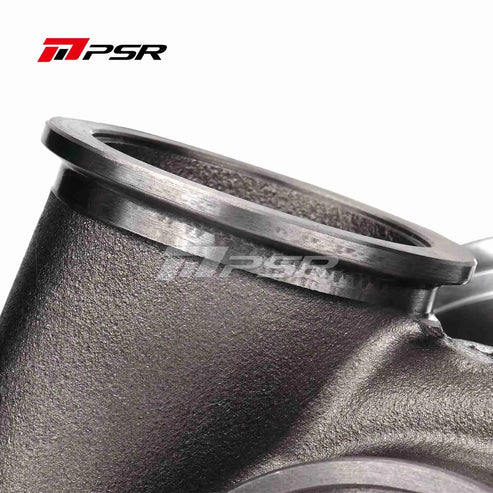

- Turbine Outlet: 3″ V-Band (3.55″OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
- We highly recommended running water cooling for better durability
- Regular price
- $1,628.40
