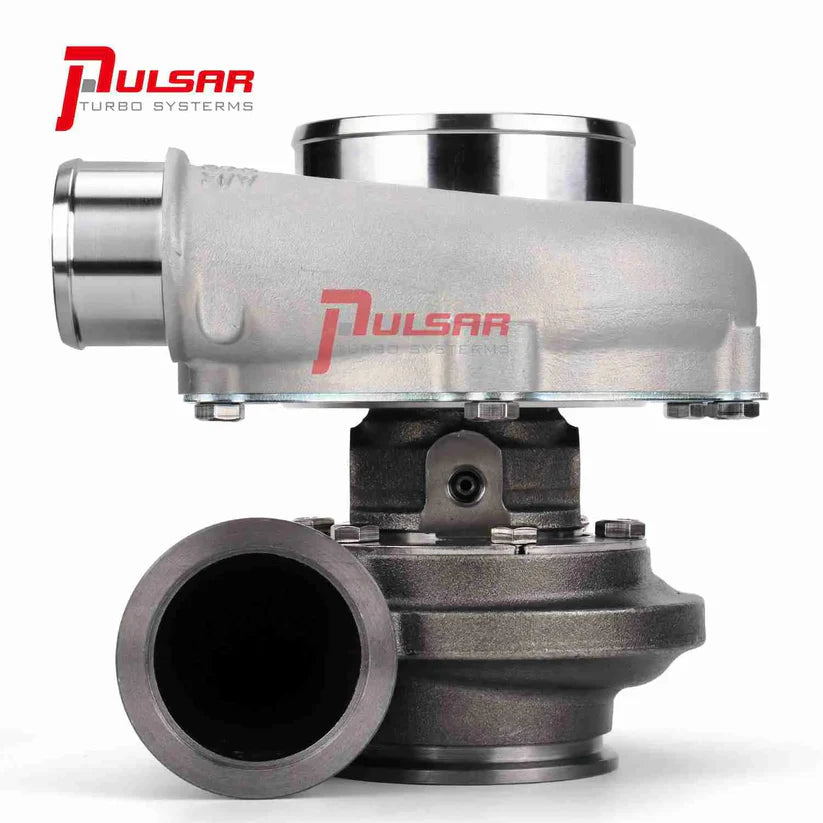

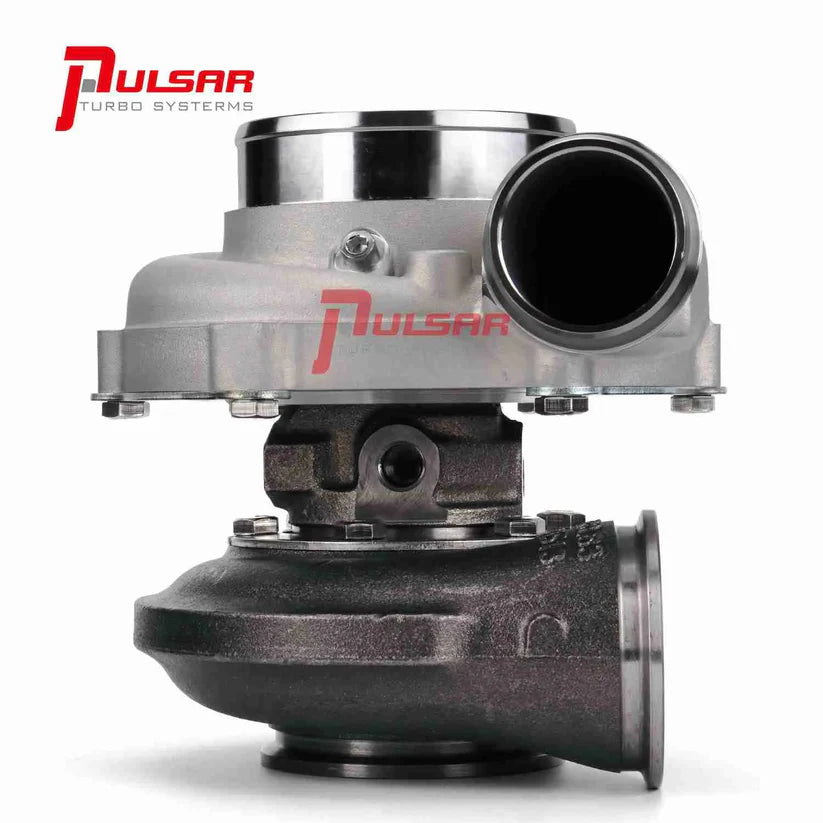

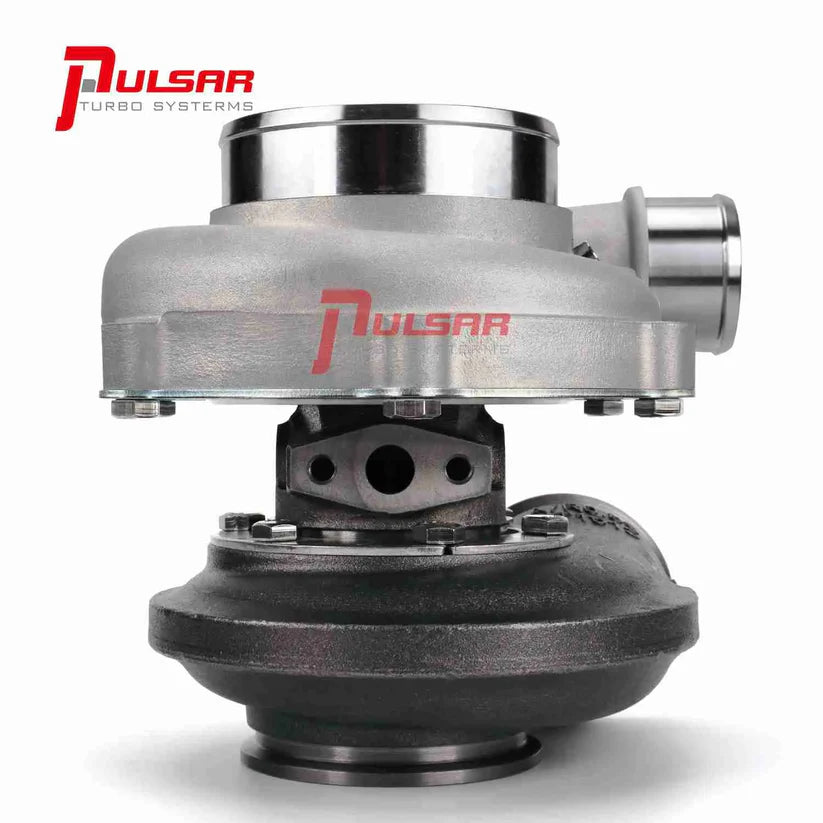

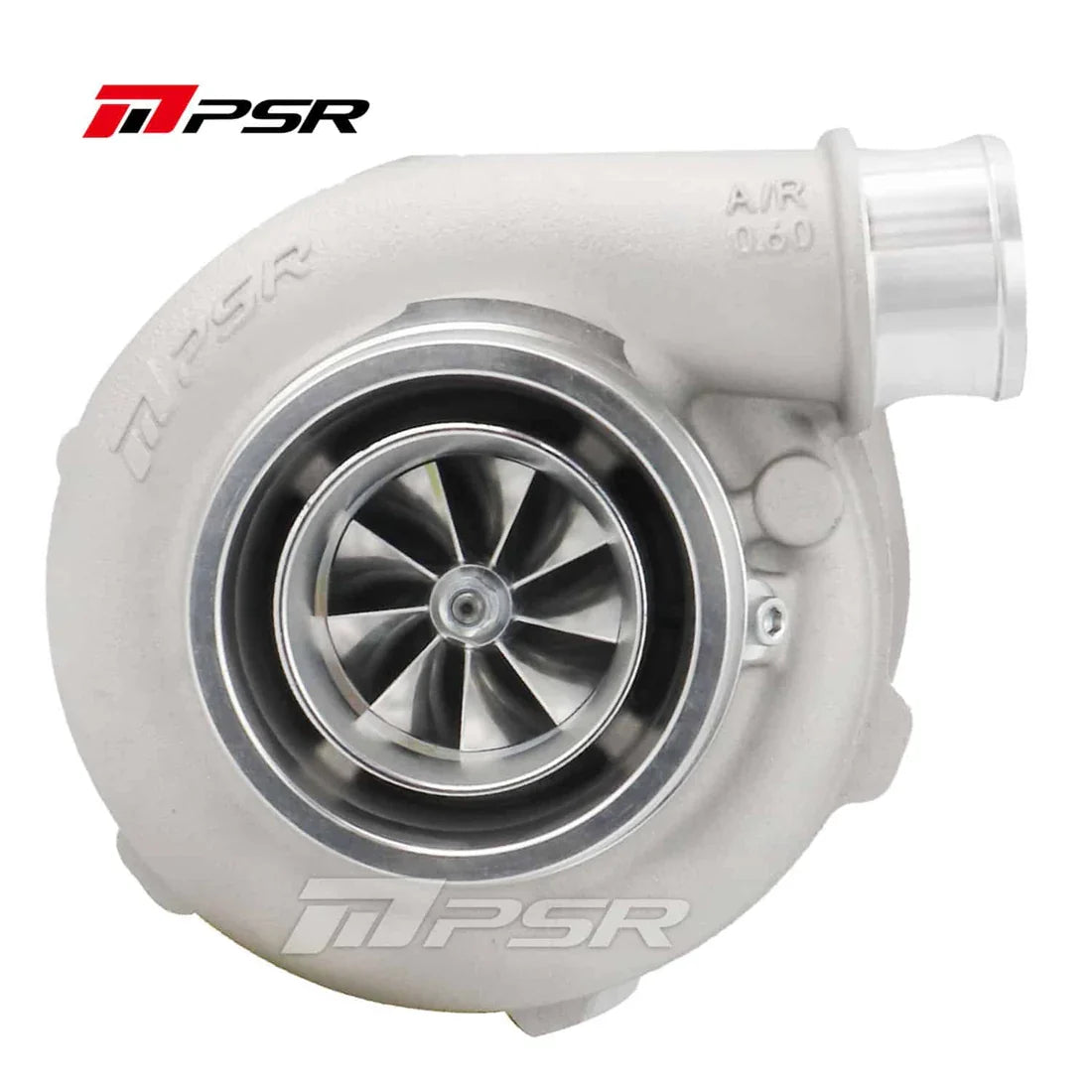

Features:

• Dual Ceramic Ball Bearing System

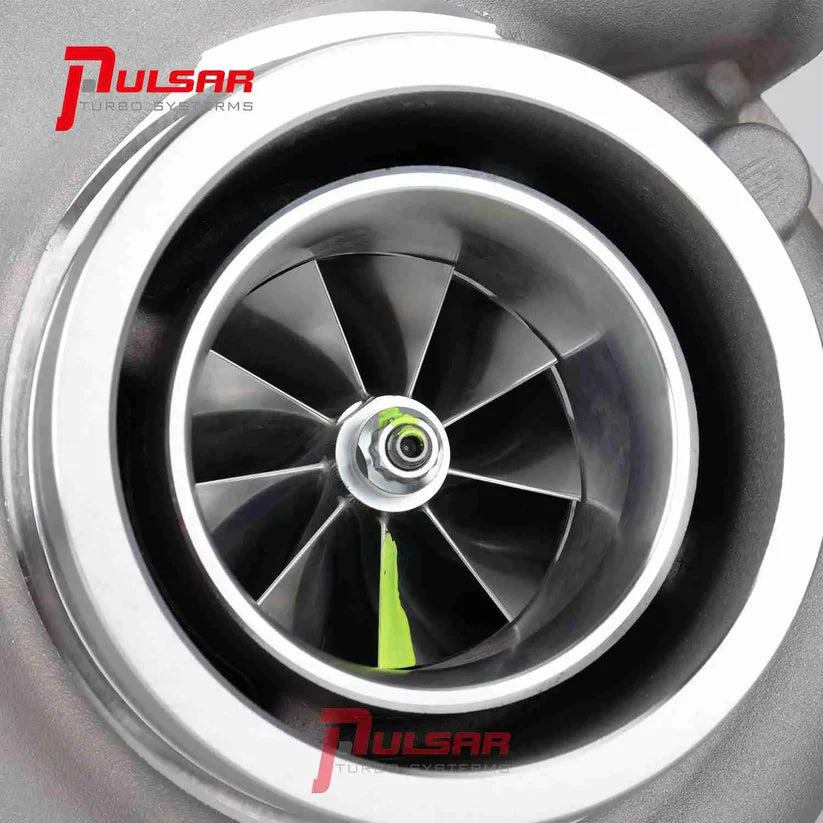

• 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology

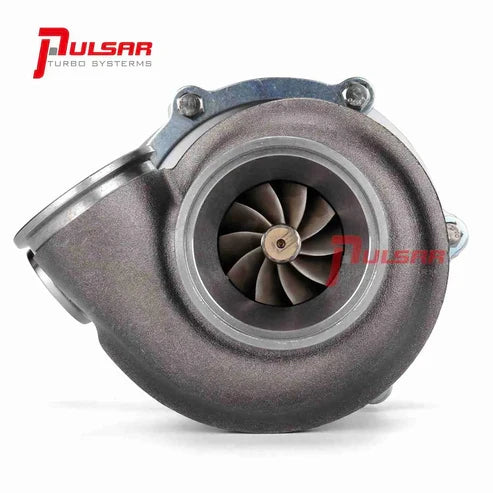

• Inconel 713c 9 Blade Turbine Wheel

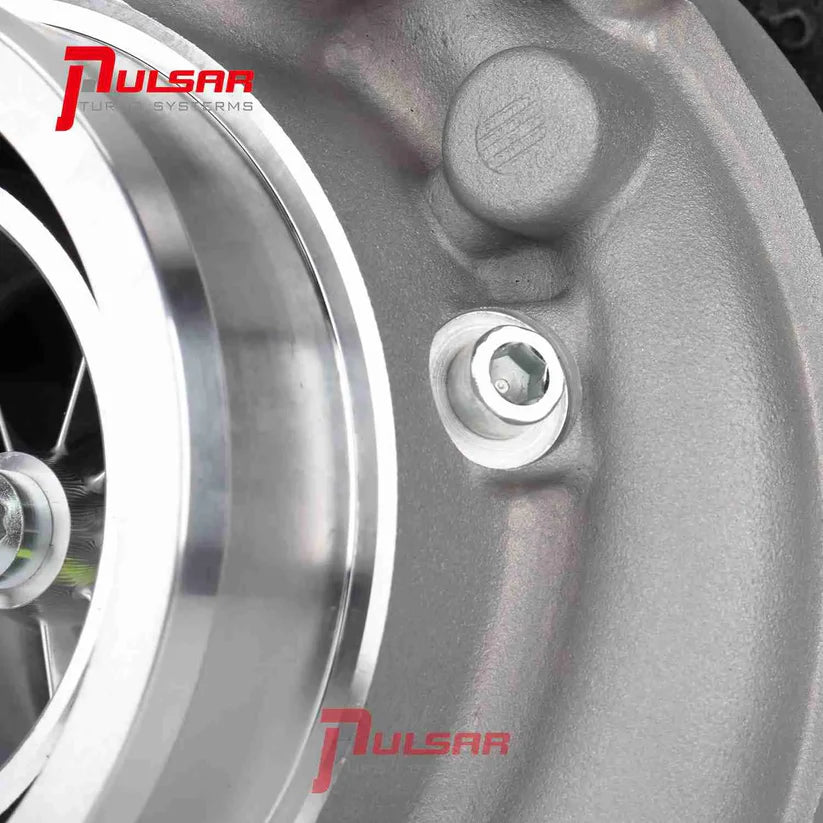

• Gen2 Cover Integrated with the Speed Sensor Port
• 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82, 1.06 A/R V-Band outlet, etc. turbine housings in option
• V-Band Flange kit(s) for the exhaust housing included
• Max Air Flow rate: 65 lb/min, rated @ 750 FWHP

Details:

• Compressor Wheel: 58*76mm
• Turbine Wheel: 68*62mm
• Compressor Inlet: 4.0 Hose

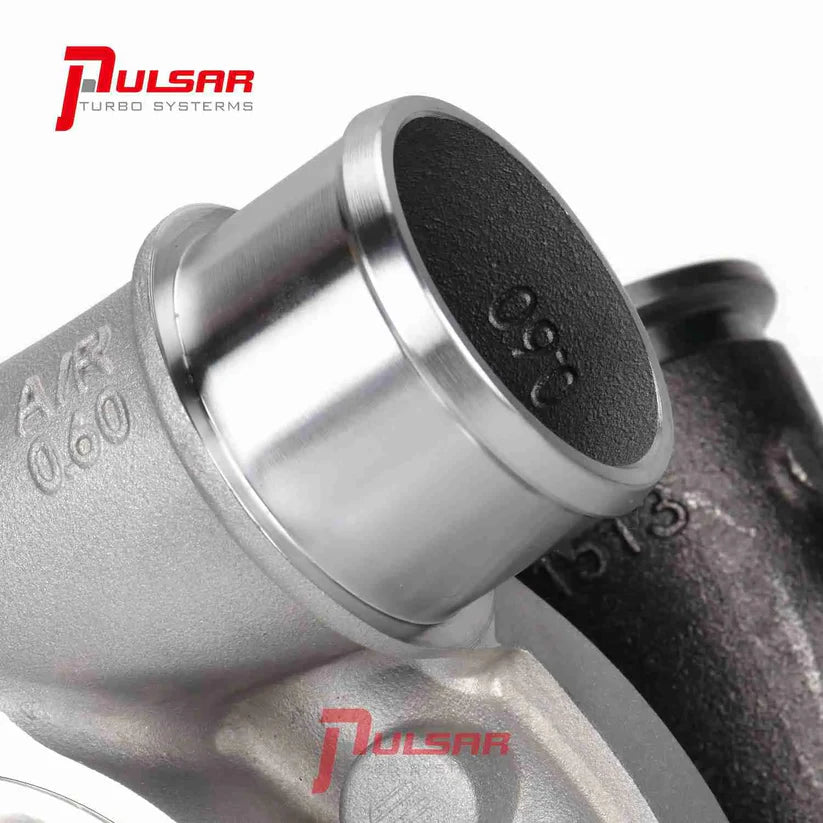

• Compressor Outlet: 2.0 Hose

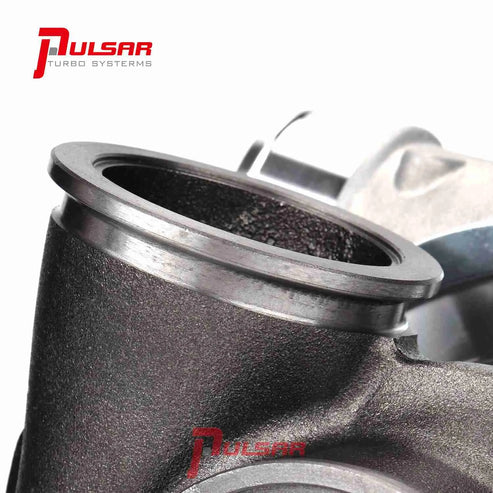

• Turbine Inlet: T3, T4, or 2.5″ V-Band
• Turbine Outlet: 3″ V-Band (3.55″OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
