- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- 2 Options in Turbine Housing

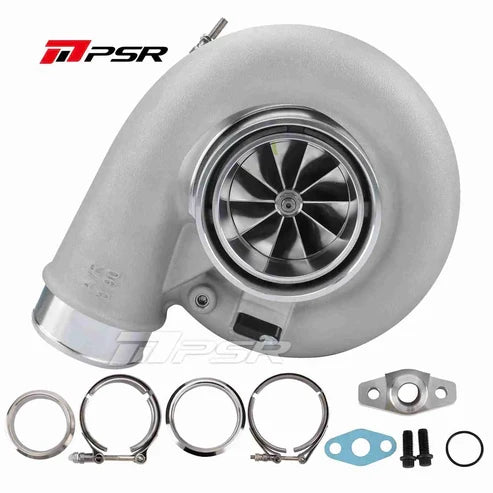

- Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
- Oil Feed Fitting needs to be bought separately
Details:
- Compressor Wheel: 73*91mm
- Turbine Wheel: 82*75mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 3″ hose
- Turbine Inlet: 3″ V-Band
- Turbine Outlet: 3.5″ V-Band
- Water Ports: -6AN
- Oil Feed: Flange Required
- Oil Drain: -12AN (O-Ring sealed Flange Kit Incl’)
Turbine housing option:
- Vband inlet (fit 3″ OD tubing) and Vband outlet (fit 3.5″ OD tubing), 1.01 A/R
- Vband inlet (fit 3″ OD tubing) and Vband outlet (fit 3.5″ OD tubing), 1.15 A/R
