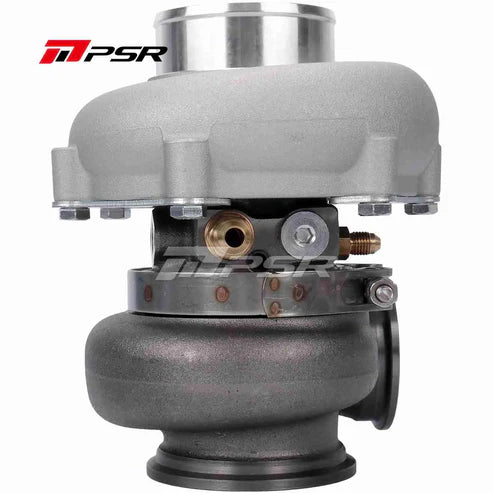

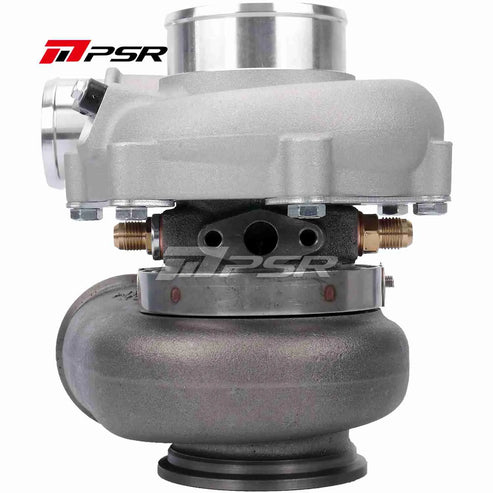

- Dual ceramic ball bearing system provides optimal turbo response &

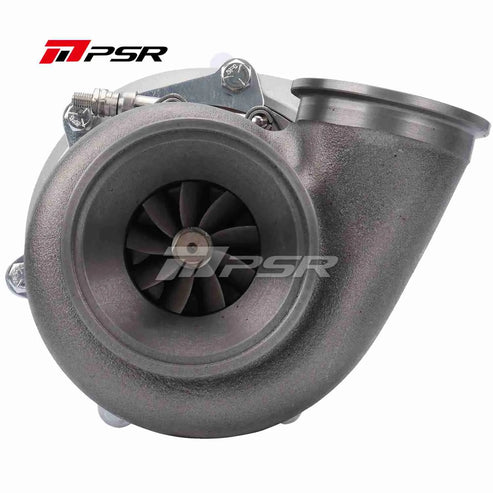

better durability by reducing the shaft-motion - 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel

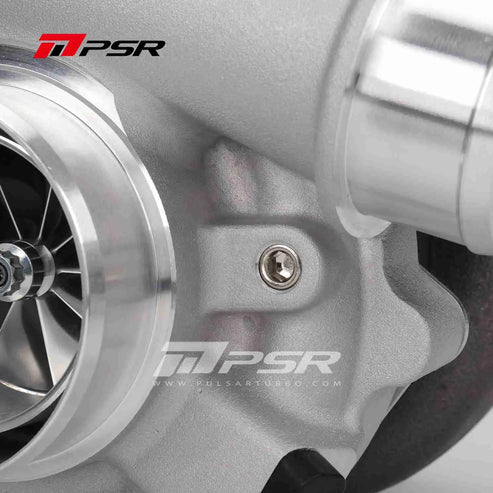

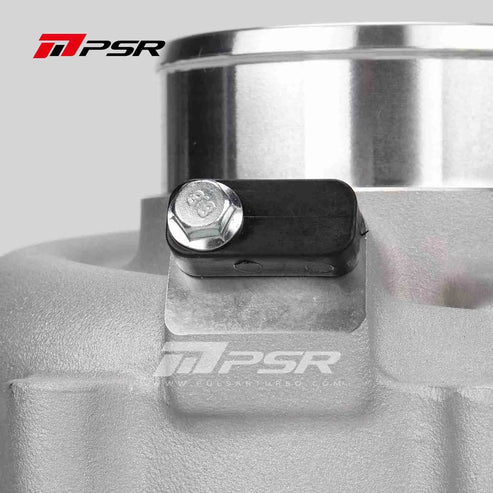

- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Details:
- Compressor Wheel: 58*71mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 4” Hose

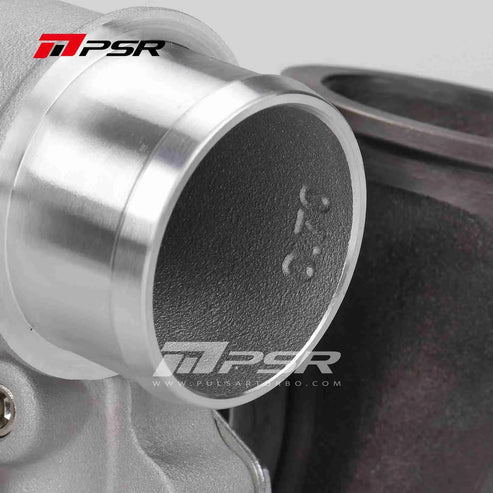

- Compressor Outlet: 2” Hose
- Turbine Inlet: T3/T4/V-Band

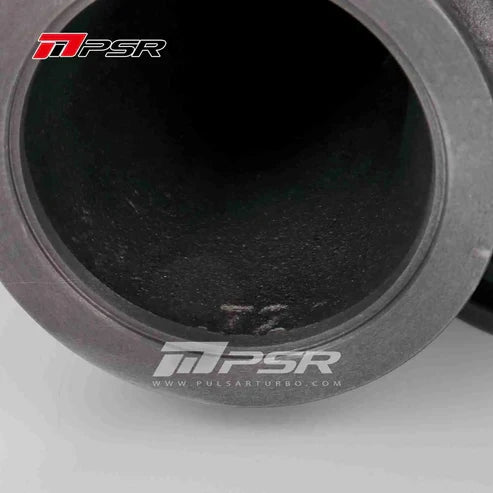

- Turbine Outlet: 3” V-Band

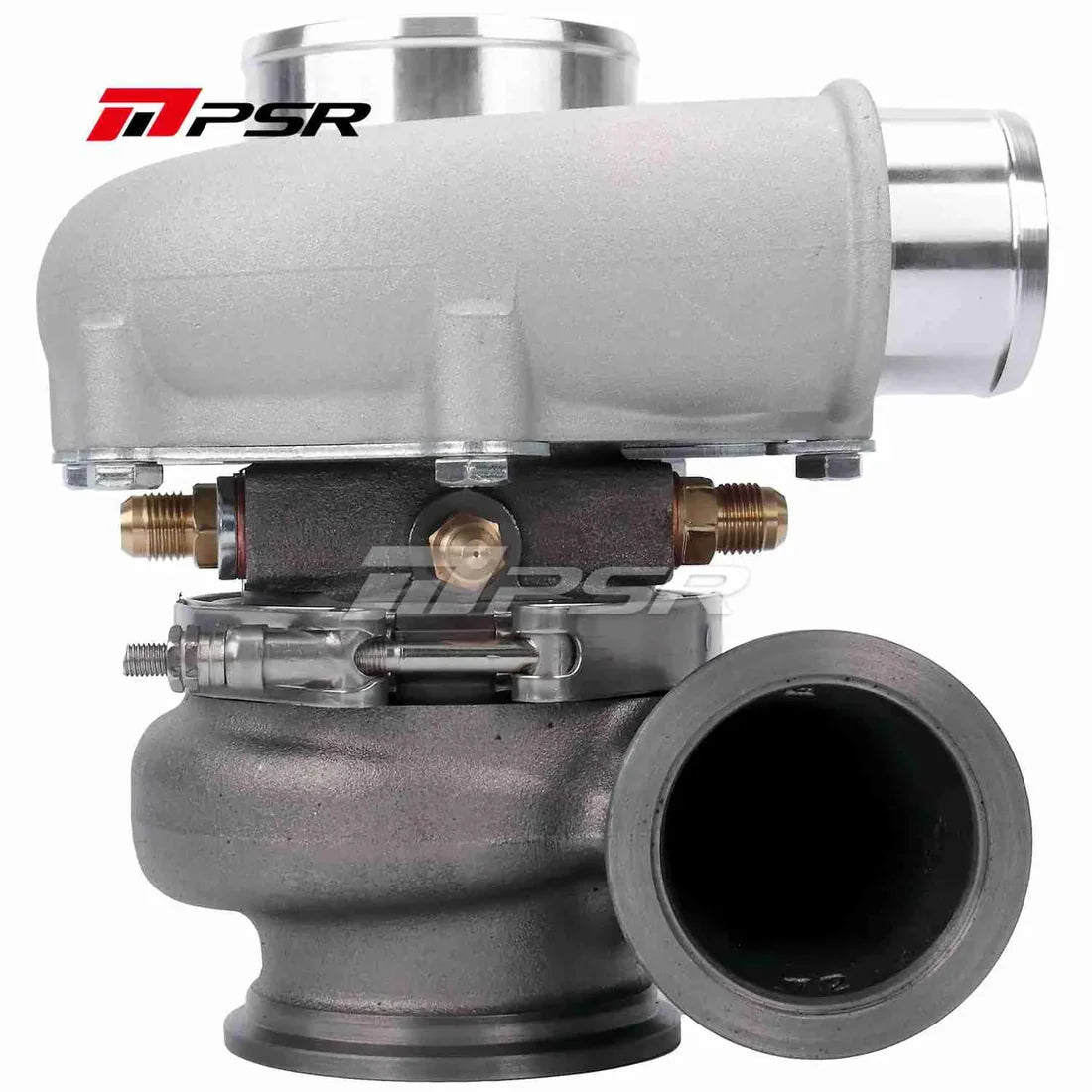

- Water Ports: 2-M14 x 1.5

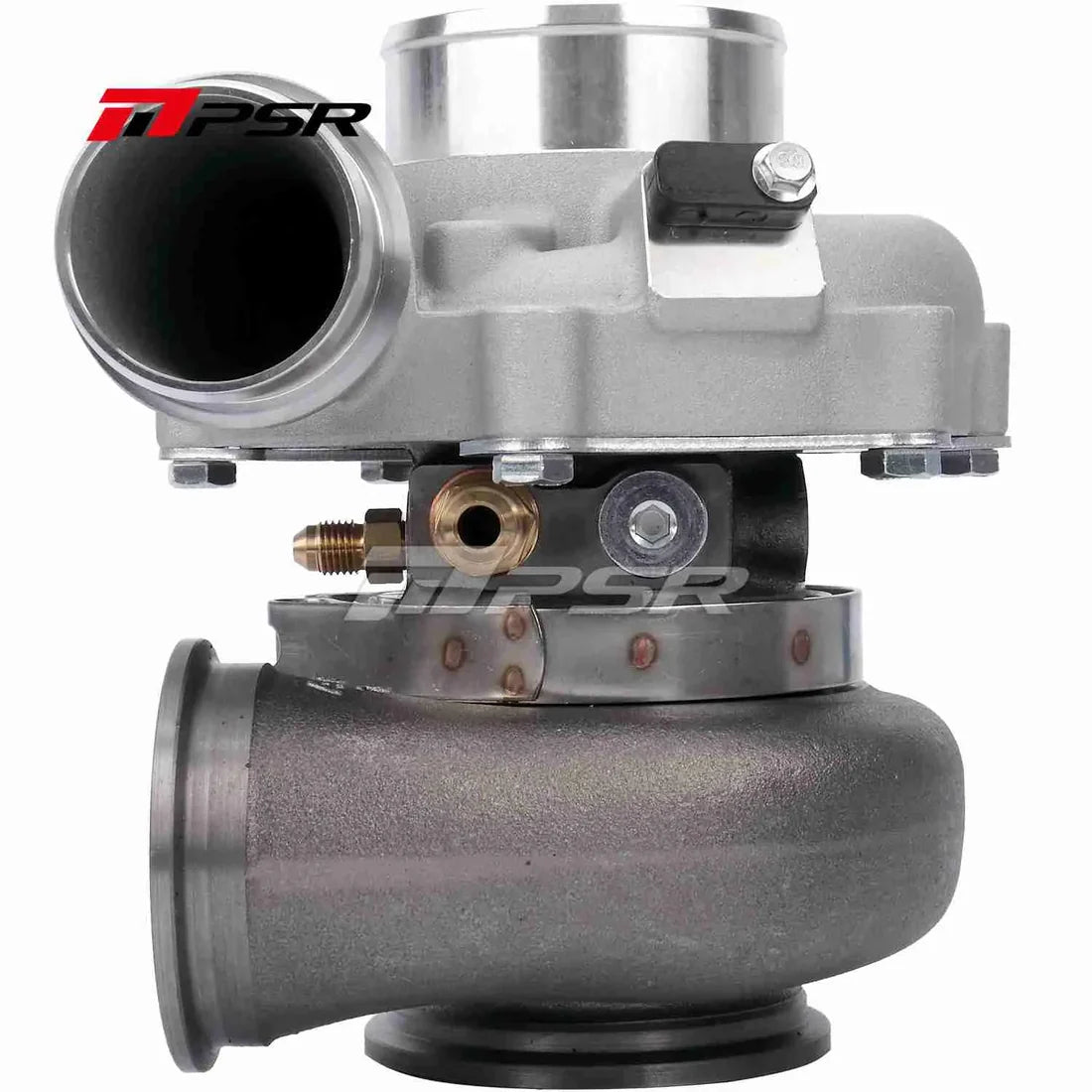

- Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
- Oil Drain: Std T3

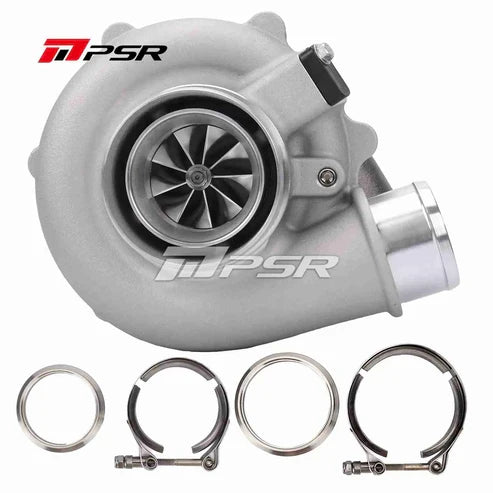

- Turbine housing: Dual vband 1.01A/R; T3 1.01A/R (Dual vband 1.01A/R+ an adapter vband to T3); T4 1.01A/R (Dual vband 1.01A/R+ an adapter vband to T4)
