Features:

            • Dual ceramic ball bearing system provides optimal turbo response &
              better durability by reducing the shaft-motion

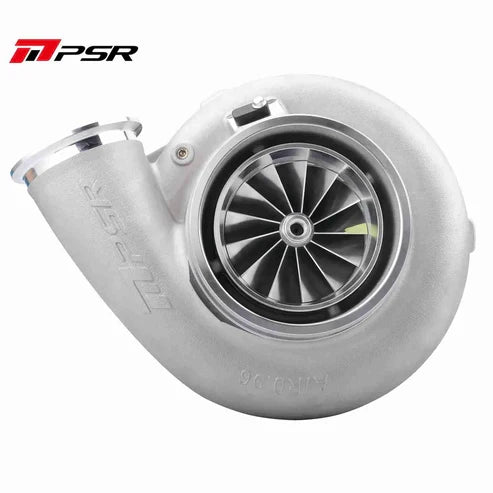

            • 13 Blade G-Aero billet compressor wheel 106mm inducer produces up to 3000 hp

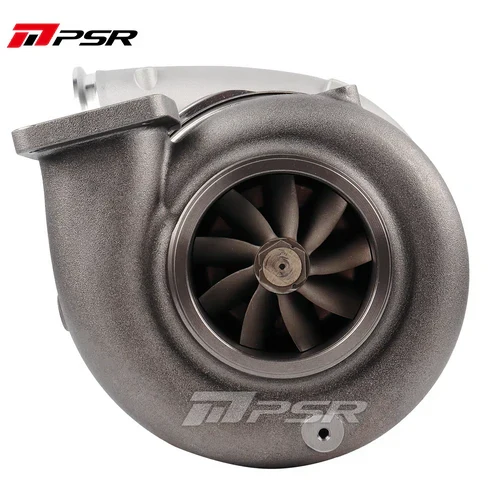

            • 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
            • Fin cooled aluminum center housing, lighter weight
            • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
            • Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
            • Oil Feed Fitting needs to be bought separately

            Details:

            • Compressor Wheel: 106*144mm
            • Turbine Wheel: 118*112mm
            • Compressor Inlet: 6” Hose
            • Compressor Outlet: 4” V-band
            • Compressor Housing A/R: 0.96
            • Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
            • Turbine Outlet: 5” V-Band
            • Turbine Housing A/R: 1.09/1.25/1.41
            • Oil Feed: See graph below (OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
            • Oil Drain: See graph below (OIL OUTLET)

            Pulsar Turbo Systems New Zealand

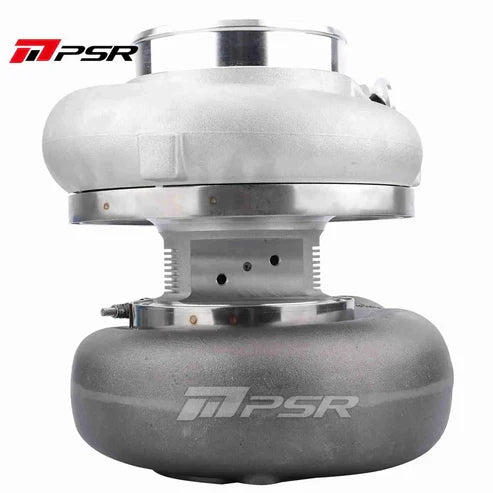

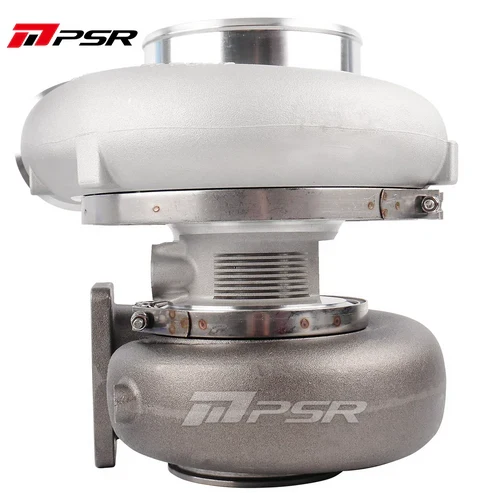

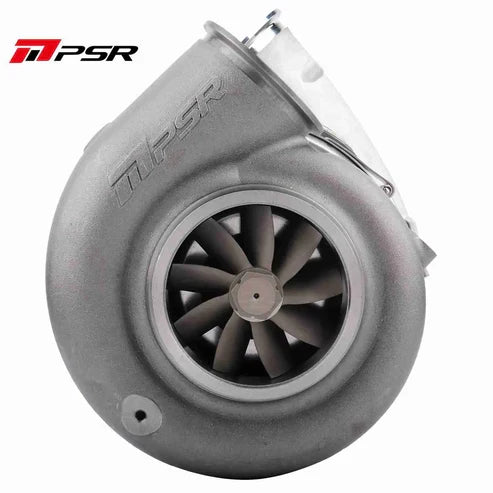

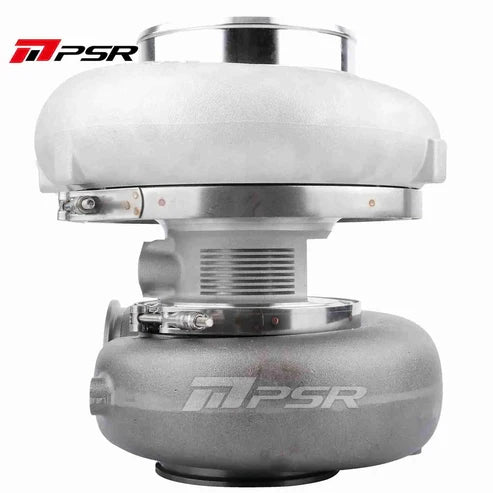

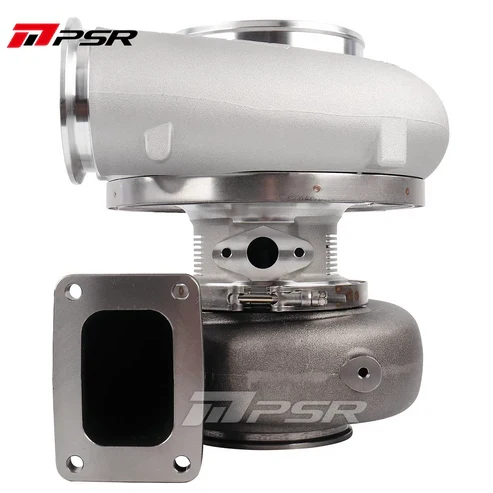

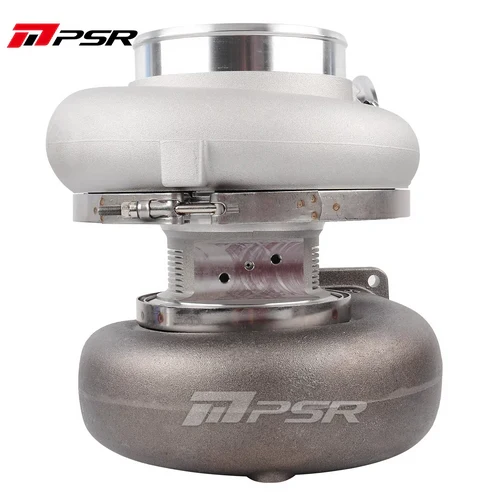

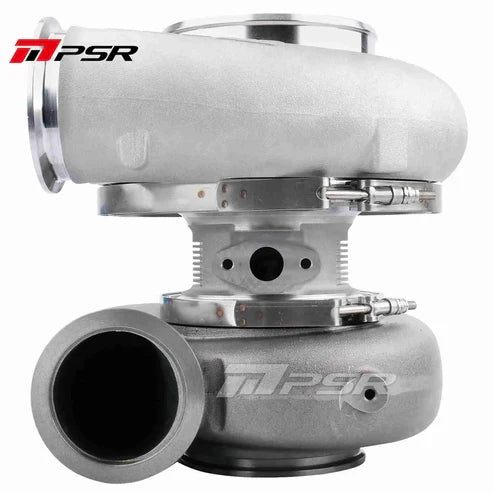

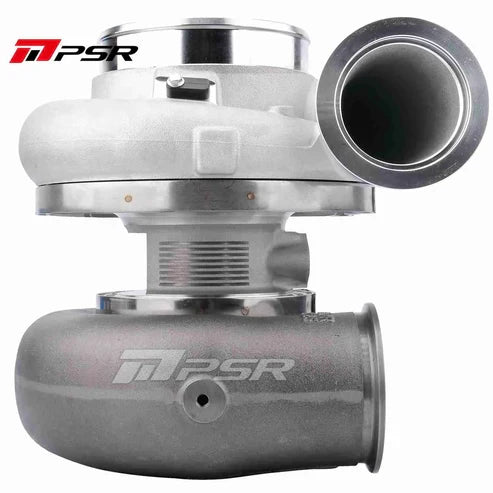

            PSR PRO106 HP Rating 3000

            $6,106.50

            Features:

                      • Dual ceramic ball bearing system provides optimal turbo response &
                        better durability by reducing the shaft-motion
                      • 13 Blade G-Aero billet compressor wheel 106mm inducer produces up to 3000 hp
                      • 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
                      • Fin cooled aluminum center housing, lighter weight
                      • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
                      • Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
                      • Oil Feed Fitting needs to be bought separately

                      Details:

                      • Compressor Wheel: 106*144mm
                      • Turbine Wheel: 118*112mm
                      • Compressor Inlet: 6” Hose
                      • Compressor Outlet: 4” V-band
                      • Compressor Housing A/R: 0.96
                      • Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
                      • Turbine Outlet: 5” V-Band
                      • Turbine Housing A/R: 1.09/1.25/1.41
                      • Oil Feed: See graph below (OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
                      • Oil Drain: See graph below (OIL OUTLET)
                      $6,106.50
                      Compressor Housing:
                      Turbine Housing:

                      Features:

                                • Dual ceramic ball bearing system provides optimal turbo response &
                                  better durability by reducing the shaft-motion
                                • 13 Blade G-Aero billet compressor wheel 106mm inducer produces up to 3000 hp
                                • 9 Blade G-Aero Inconel 713c turbine wheel with more turbine flow
                                • Fin cooled aluminum center housing, lighter weight
                                • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
                                • Installation Hardware: 4” flange kit for Comp. Outlet, T6 Gasket/3.5” flange kit for Turb. Inlet, 5” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
                                • Oil Feed Fitting needs to be bought separately

                                Details:

                                • Compressor Wheel: 106*144mm
                                • Turbine Wheel: 118*112mm
                                • Compressor Inlet: 6” Hose
                                • Compressor Outlet: 4” V-band
                                • Compressor Housing A/R: 0.96
                                • Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
                                • Turbine Outlet: 5” V-Band
                                • Turbine Housing A/R: 1.09/1.25/1.41
                                • Oil Feed: See graph below (OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)
                                • Oil Drain: See graph below (OIL OUTLET)
