- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Details:

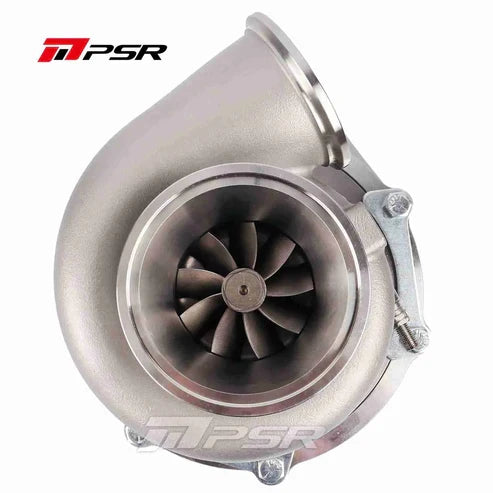

- Compressor Wheel: 58*71mm

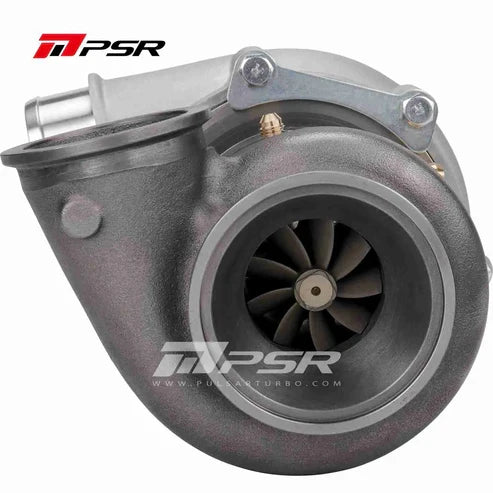

- Turbine Wheel: 68*62mm
- Compressor Inlet: 4” Hose
- Compressor Outlet: 2” Hose

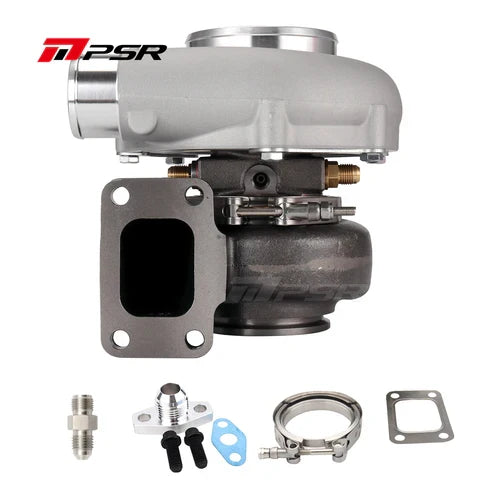

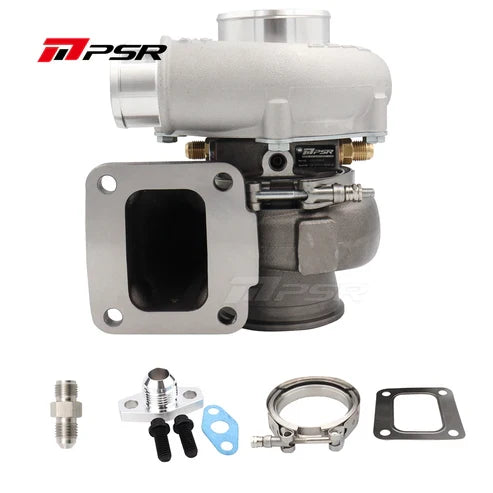

- Turbine Inlet: T3/T4/V-Band
- Turbine Outlet: 3” V-Band
- Water Ports: 2-M14 x 1.5
- Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
- Oil Drain: Std T3

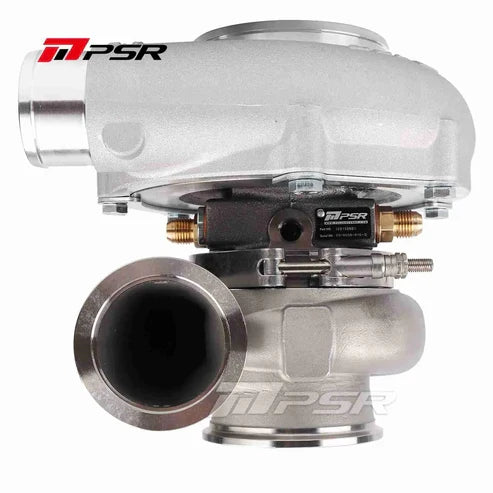

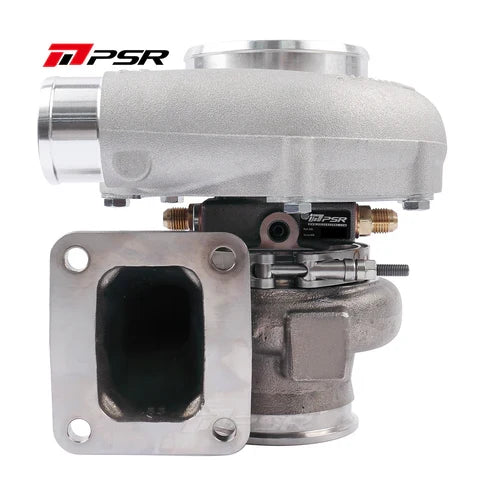

- 7 options of turbine housing: T3 0.83A/R; T4 0.82A/R; Dual vband 0.83A/R; Dual vband 1.01A/R; T4 divided 0.85A/R; T3 1.01A/R (Dual vband 1.01A/R+ an adapter vband to T3); T4 1.01A/R (Dual vband 1.01A/R+ an adapter vband to T4)
