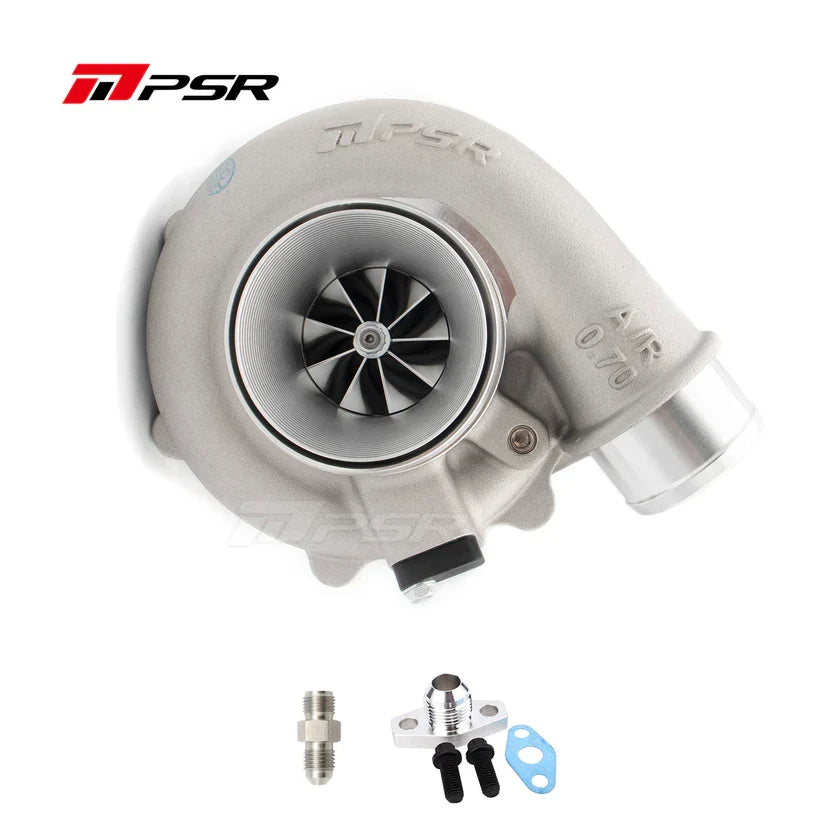

files/G25-_0.7ar-supercore_783e9d42-ad2a-4b1e-b0fd-f3d279fa72e4.webp
-
files/G25-_0.7ar-supercore_a8f79628-0d2a-4d34-a890-0fb0d320452c.webp
-
files/G25-_0.7ar-PSR_0311d4af-0925-4b28-8cdd-7e1f3e21112b.webp
-

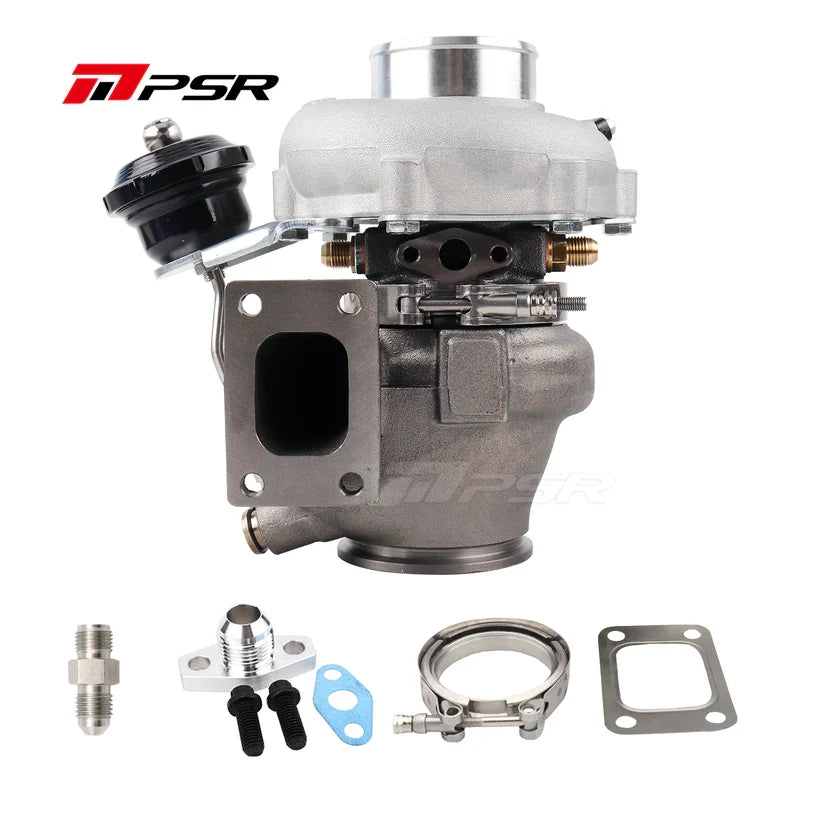

files/G25-0.7ar-PSR_-T25_1a4d3bd1-7477-4802-a679-6b869cf74083.webp
-

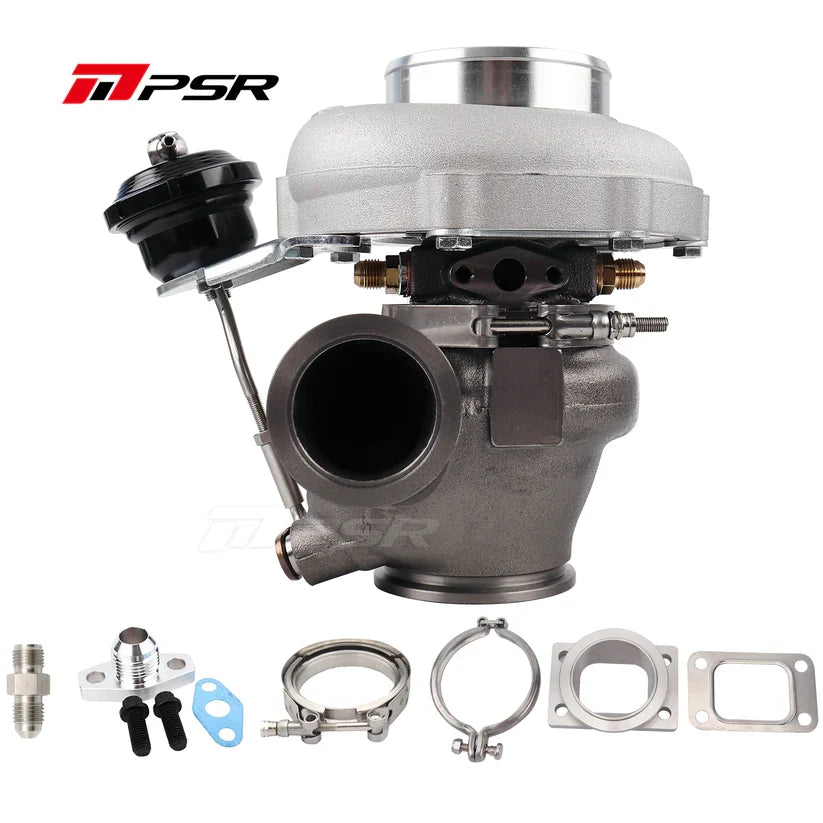

files/G30-DV-IWG-T3-adapter_3257e485-7b87-41f8-b4f1-3a2ed4c1588a.webp
-
files/G30-DV-IWG-T25-adapter_b7e6d3e3-01d1-4c38-84e4-de0bbabb9188.webp
-
files/G25-0.7ar_a3abdcc4-e4b0-4fad-8ffe-4d70c18d9cb2.webp
-

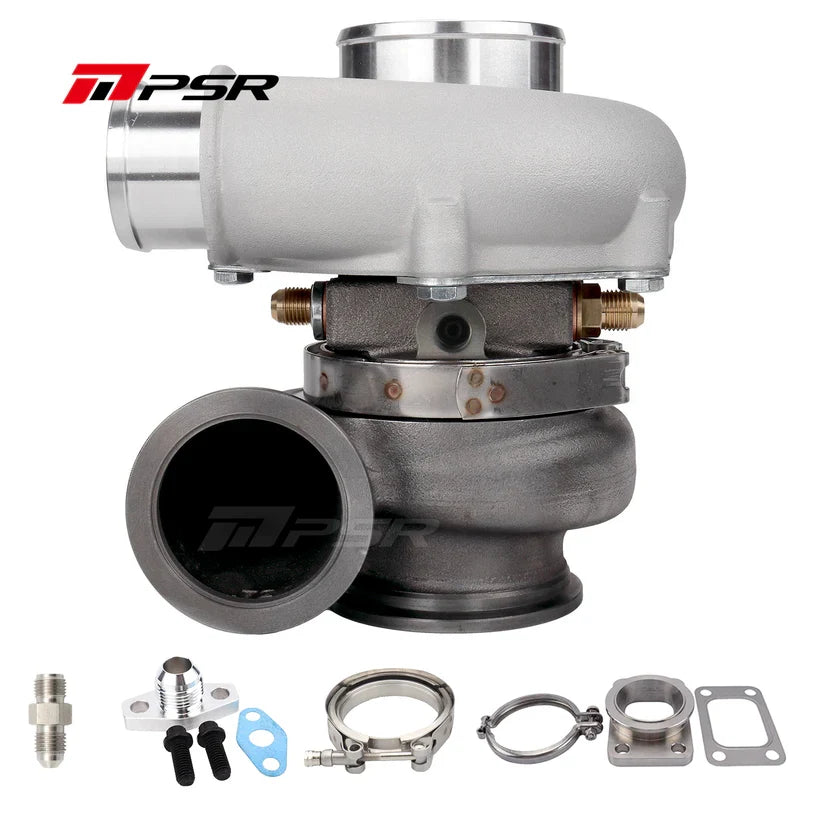

files/G25-DV-T25-adapter_637ba953-d289-42a3-b406-3e2dd25a7c19.webp
-
files/G25-0.7ar-T3_0f811408-2575-421f-b4d4-e8a8437563a0.webp
-
files/logo_G25-550-_-_-scaled_3d78856b-9097-4116-acda-a5386d748eb8.webp
-
files/3_7bbece5a-66c3-4cac-bb68-fbc76d0d1645.webp
-
files/4-3_9a875932-bb79-4d90-ade0-0ae6162c4e26.webp
-
files/5_42c71fcc-067f-45e3-81b4-1c3914b76a54.webp
-
files/6-1_114e687b-1edc-408b-a8dc-d4b4e714e883.webp
-
files/7-2_7cc1541e-3a44-4460-a191-a0c2c69c9459.webp
-
files/8-2_bcda9179-5dac-485f-8635-943b123d6f17.webp
-
files/9-1_6440ee4b-08fa-4146-b8d4-a29a9dc37657.jpg
-
files/2_b2365b48-7272-4fae-a46b-6049cb1442c4.webp
-
files/2-1_67451326-579d-4907-a790-c9df9f5513b5.jpg
-
files/3-1_65b421da-f0bc-4057-be5f-6708607f20ac.webp
-
files/4-1_d83ecbb4-a222-4232-a8e0-f93c727a7992.webp
-
files/5-1_a2ab8e12-1796-4c41-a327-a467b25a5b5f.webp
Features:
NOTE: This is the 4" (Refer to products for the 3")
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel

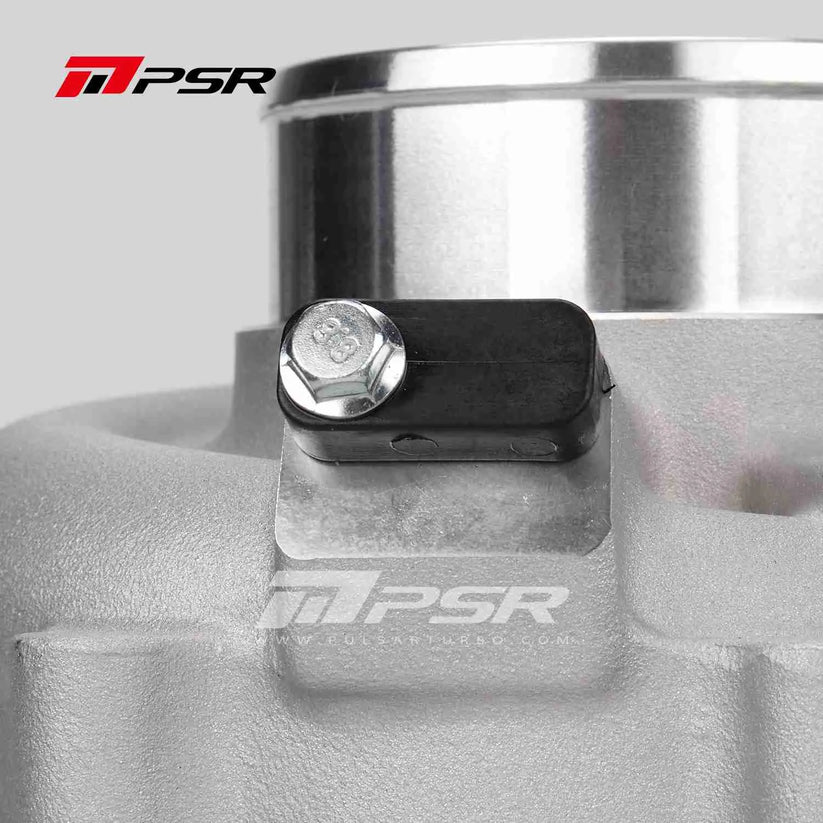

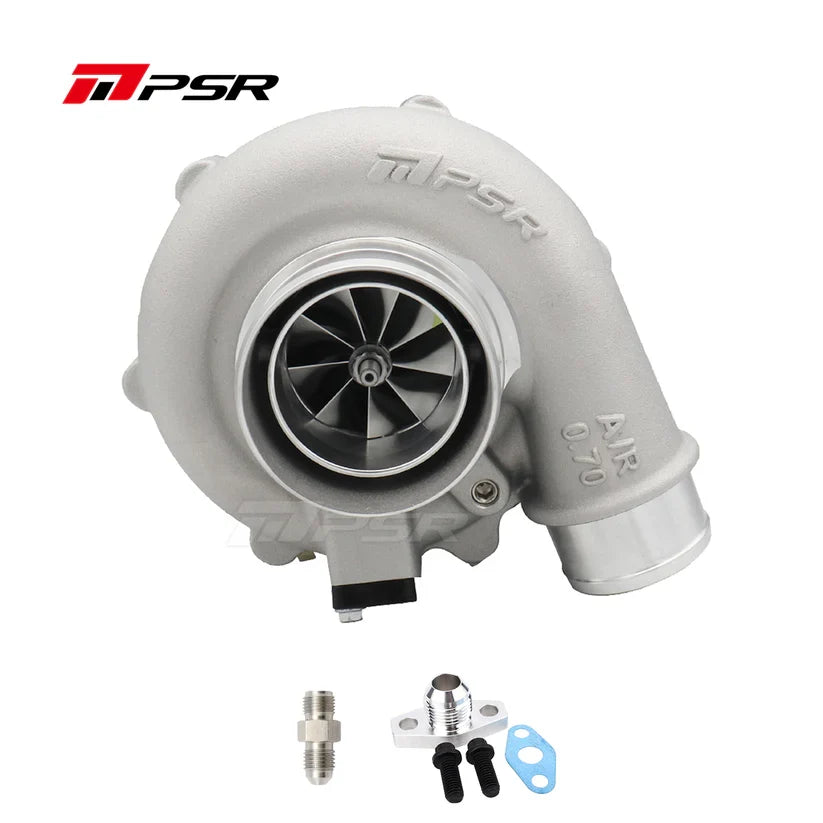

- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Internally Wastegated, Billet Actuator (Working pressure 12 psi)
Details:
Pulsar Turbo Systems New Zealand

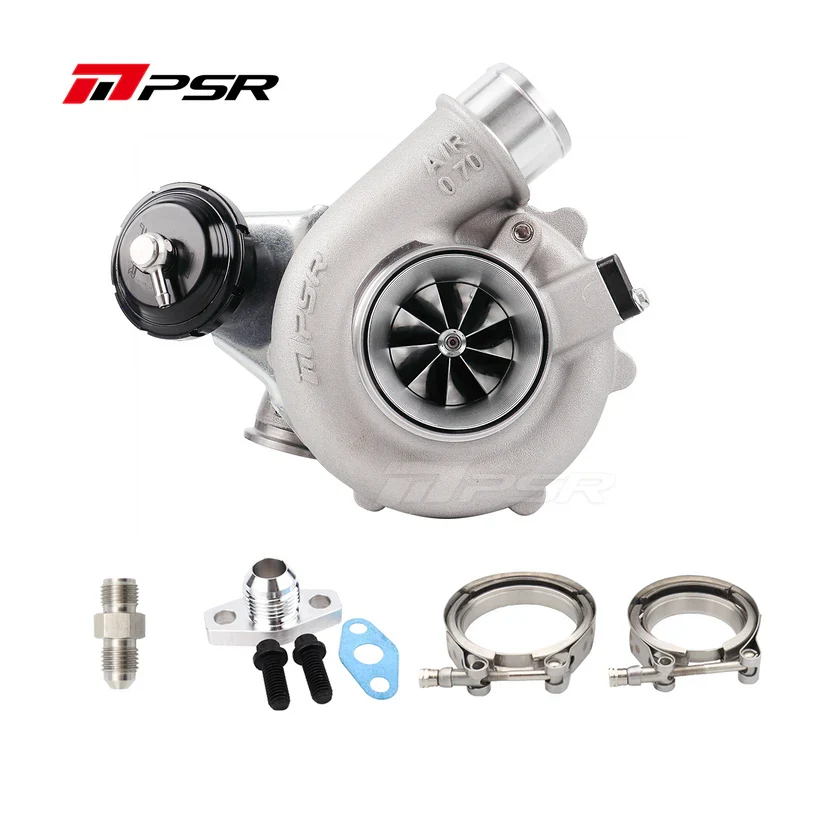

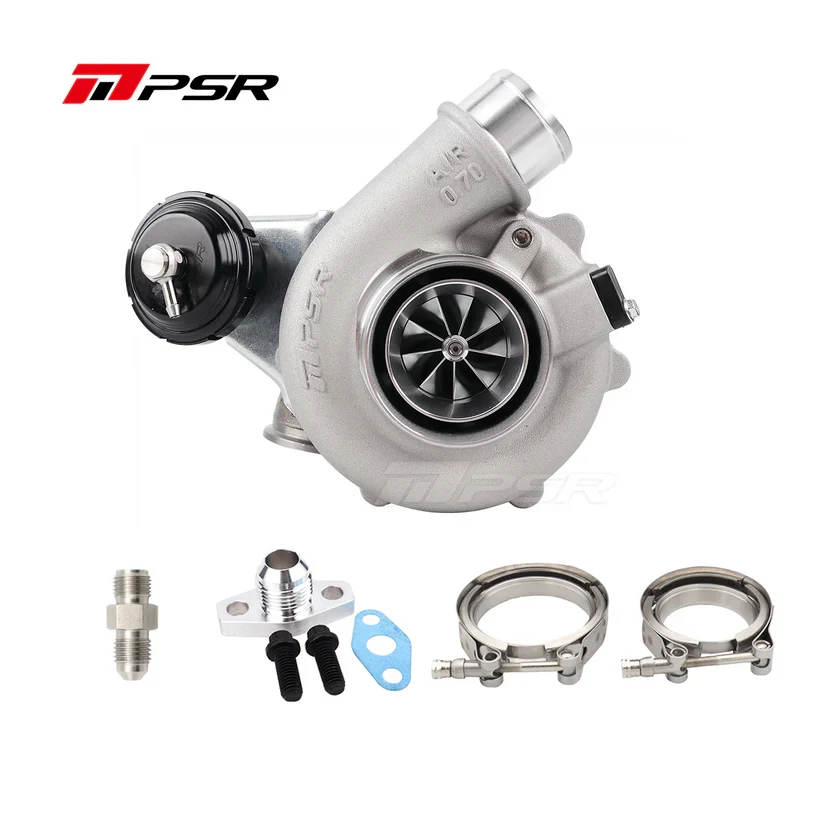

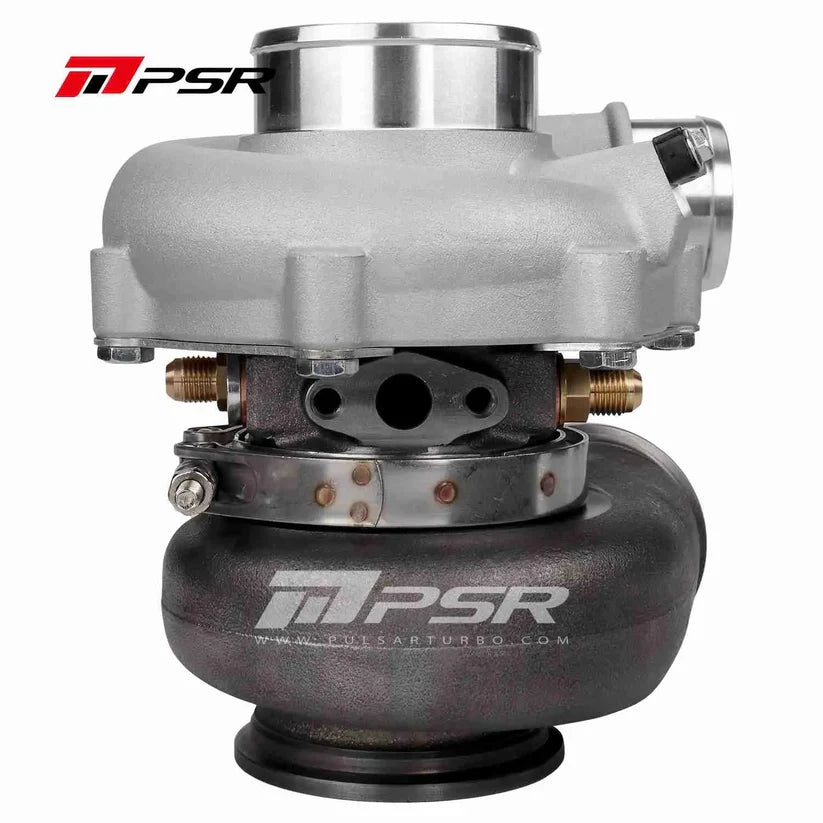

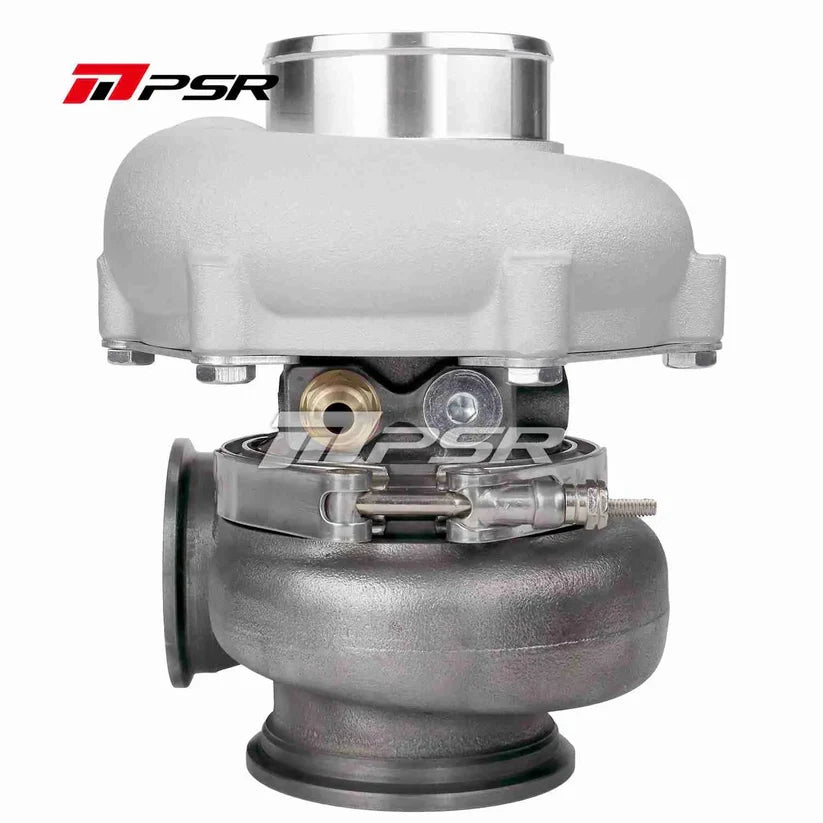

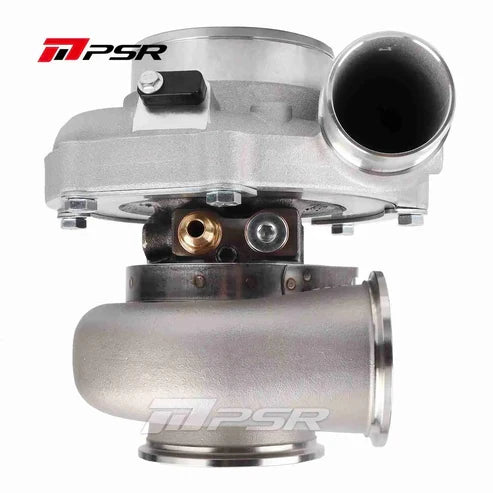

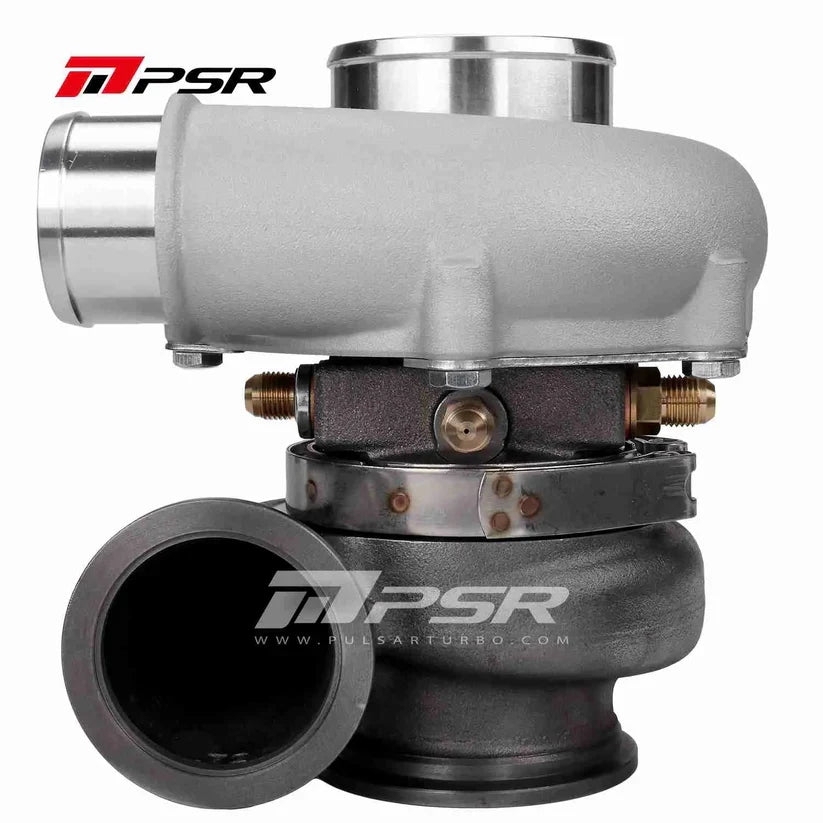

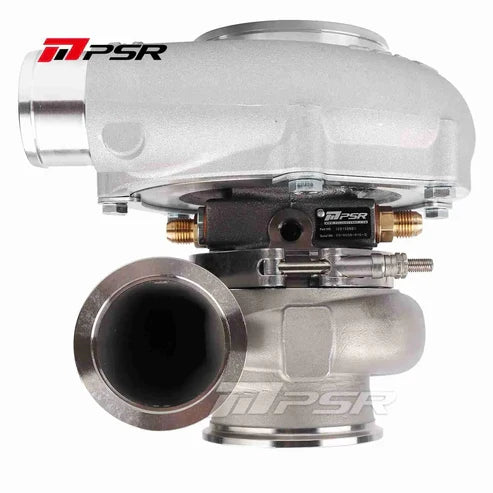

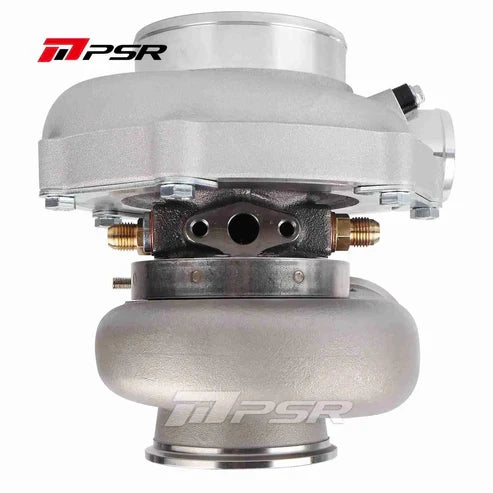

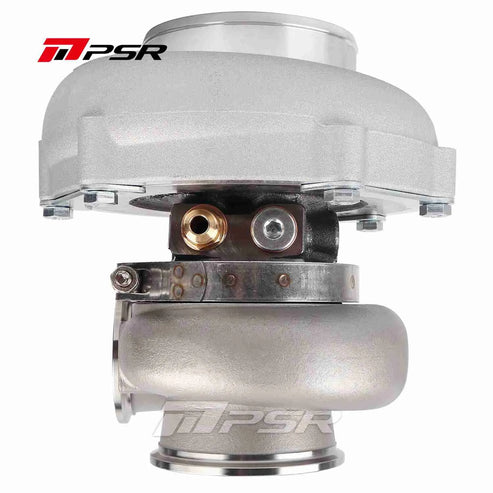

PSR Forward Rotation 5455G 4" Dual Ball Bearing Turbocharger HP Rating 660
- Regular price
- $1,831.95
Features:
NOTE: This is the 4" (Refer to products for the 3")
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 9 Blade G-Aero billet compressor wheel with extended tapered tip technology

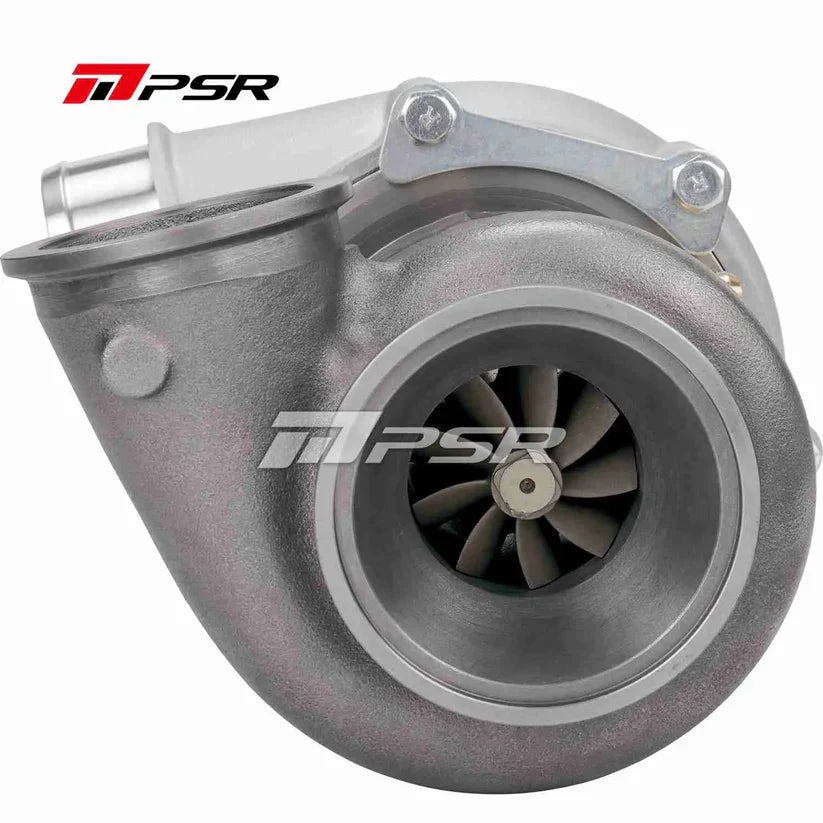

- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Internally Wastegated, Billet Actuator (Working pressure 12 psi)
Details:
- Compressor Wheel: 54*67mm
- Turbine Wheel: 60*55mm

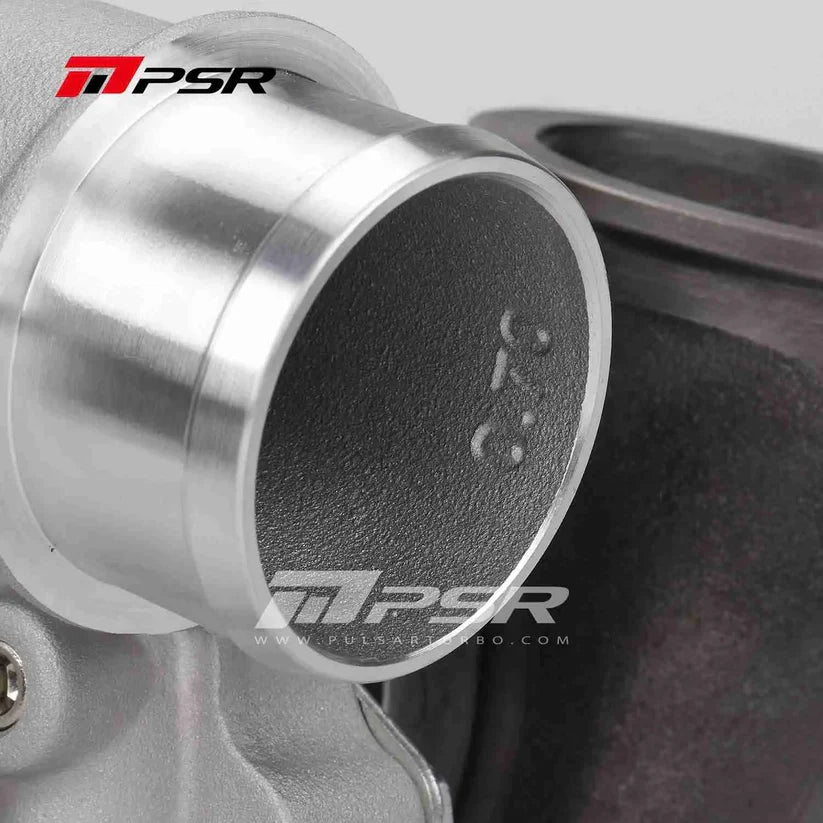

- Compressor Outlet: 2″ Hose

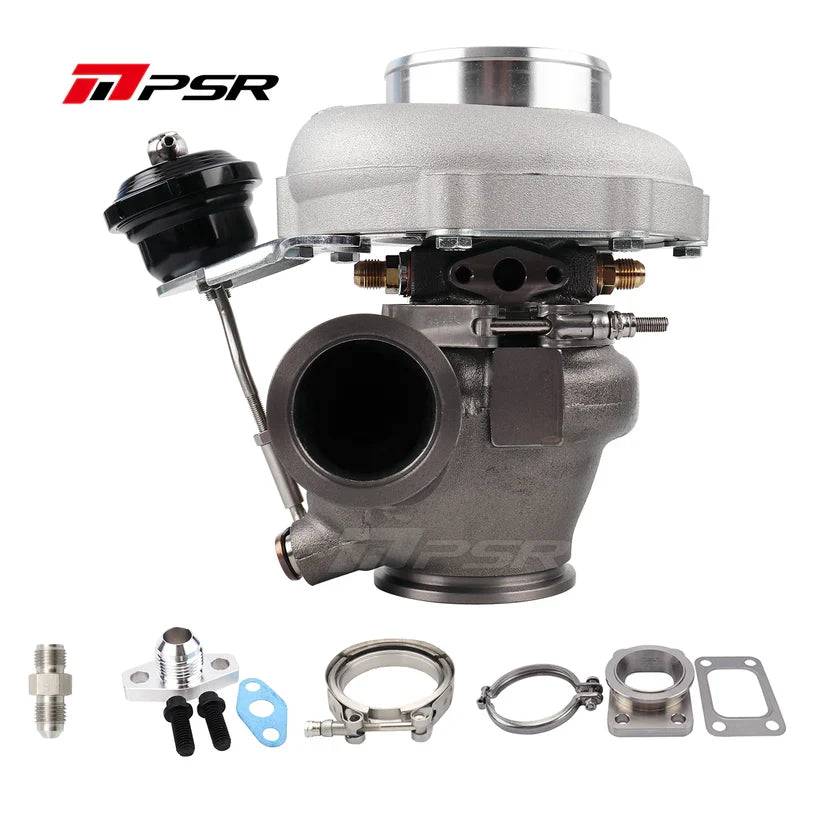

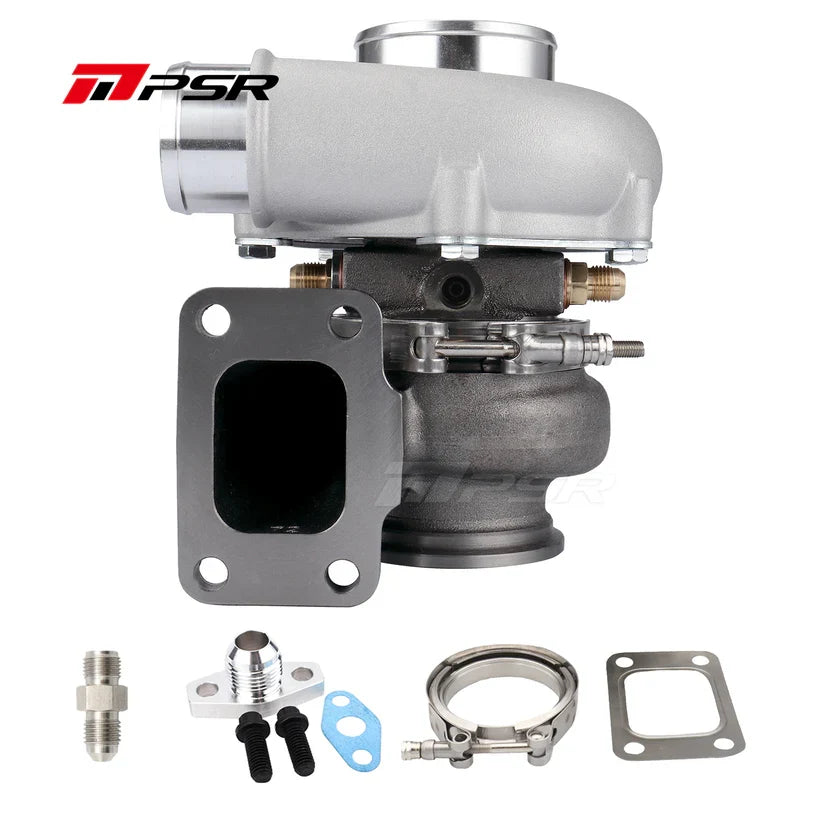

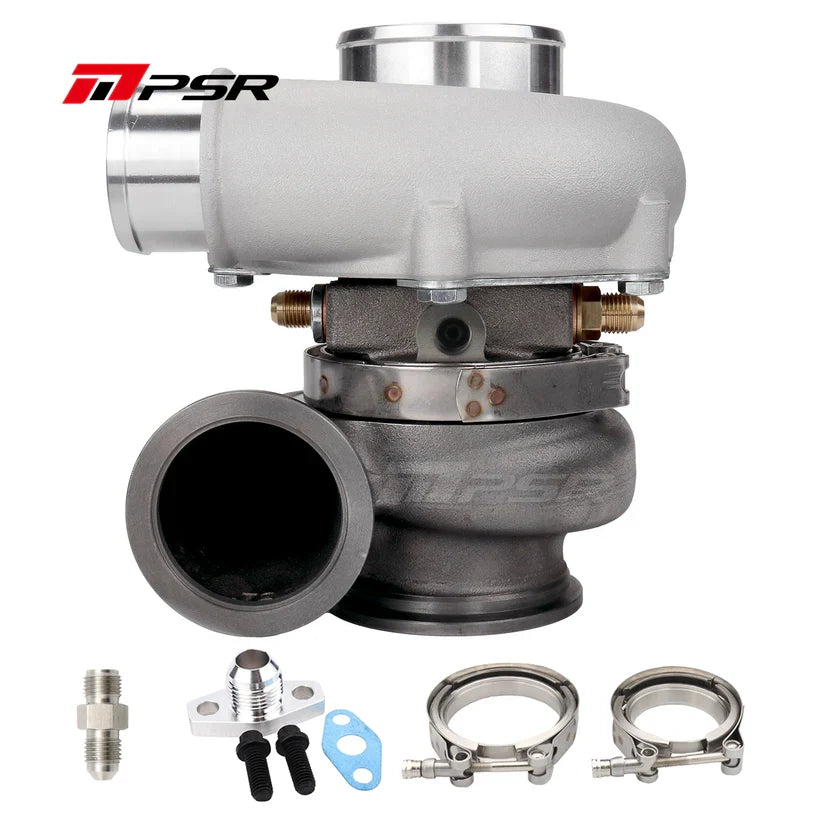

- Turbine Inlet: T25, T3, T4 or Vband
- Turbine Outlet: 3″ V-Band
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange
- 11 options of turbine housing: Dual vband 0.72A/R; Dual vband 0.83A/R; Dual vband 1.01A/R; T3 0.72A/R; T3 0.83A/R; T4 0.82A/R; T4 divided 0.85A/R; Dual vband 0.49A/R IWG; Dual vband 0.72A/R IWG; Dual vband 0.92A/R IWG; T25 0.72A/R IWG
- Regular price
- $1,831.95
Features:
NOTE: This is the 4" (Refer to products for the 3")
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Internally Wastegated, Billet Actuator (Working pressure 12 psi)
Details:
- Compressor Wheel: 54*67mm
- Turbine Wheel: 60*55mm
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T25, T3, T4 or Vband
- Turbine Outlet: 3″ V-Band
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange
- 11 options of turbine housing: Dual vband 0.72A/R; Dual vband 0.83A/R; Dual vband 1.01A/R; T3 0.72A/R; T3 0.83A/R; T4 0.82A/R; T4 divided 0.85A/R; Dual vband 0.49A/R IWG; Dual vband 0.72A/R IWG; Dual vband 0.92A/R IWG; T25 0.72A/R IWG
