PSR Class Legal 6775G Dual Ball Bearing Turbocharger

files/G42_b9aa53d1-8cb6-4c5a-bbc4-647ddbc70146.webp
files/2-5_9cc29e50-eabf-428b-b06b-72010f72b1e2.webp
files/3-5_0ec15d96-0647-4c4e-b3d2-a404c9b45ebf.webp
files/4-2_797a1626-bea5-48ba-b1c0-2a34d62bd899.webp
files/6_924b54e7-8d4d-4dbf-a017-080ba5b6b51c.jpg
files/2_57d397fd-0781-4a83-8b22-58dc783f753a.webp
files/1_3764cdc4-84c6-4952-bb2b-0cef745fe9ed.webp
files/6_9e474d7b-a20a-4819-8f40-db10653ce114.webp
files/G42_04967a3d-80d0-483b-82a1-cb2644a18377.webp
files/G42-_-DV_dde4dd2b-78ec-41dc-98f3-bb2c7a2c7c26.webp
files/G42-_-T4-divided_2_60ab3fab-2d27-47a5-95bd-c28cef82b66a.webp
files/G42-_-T4-open_1458da84-0327-4f67-8c6b-ad632925e309.webp

Features:

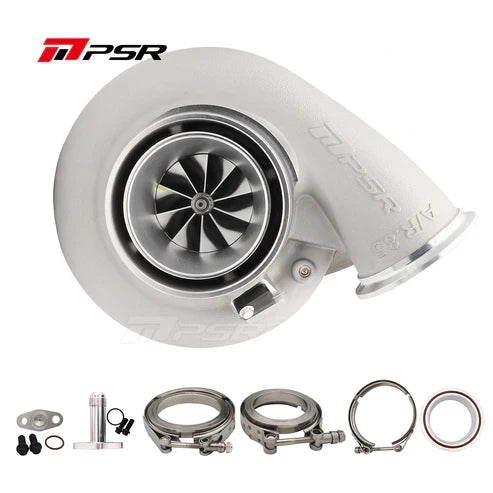

PSR Class Legal Turbo with 67/98mm Compressor wheel
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion

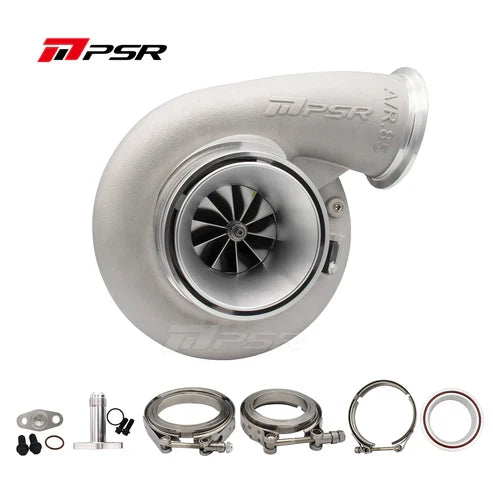

10 Blade G-Aero billet compressor wheel with extended tapered tip technology

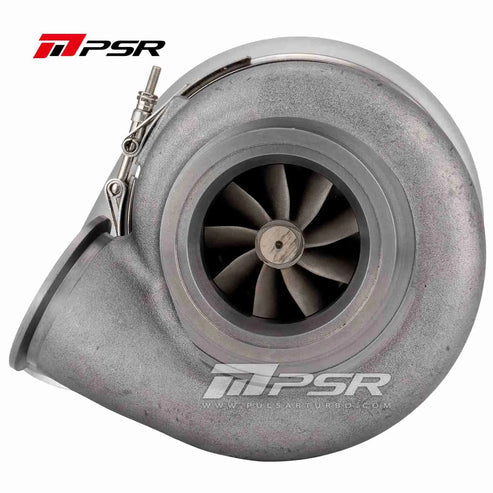

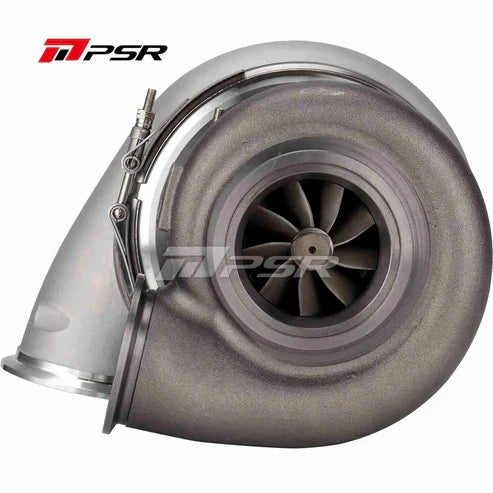

9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
7 Turbine housing in option

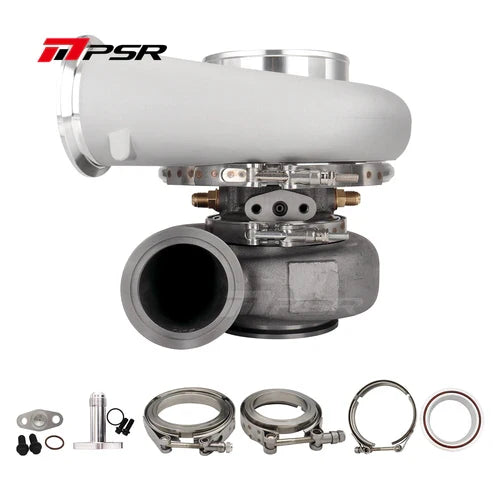

Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
Oil Feed Fitting needs to be bought separately

Details:

Compressor Wheel: 67*98mm
Turbine Wheel: 82*75mm
Compressor Inlet: 5″ Hose
Compressor Outlet: 3″ V-Band
Water Ports: -6AN
Oil Feed: Flange Required (Recommended size: -4AN Std T4 Flange Non-Restricted)
Oil Drain: Angle 15°, -12AN (O-Ring sealed Flange Kit Incl’)

Turbine housing option:

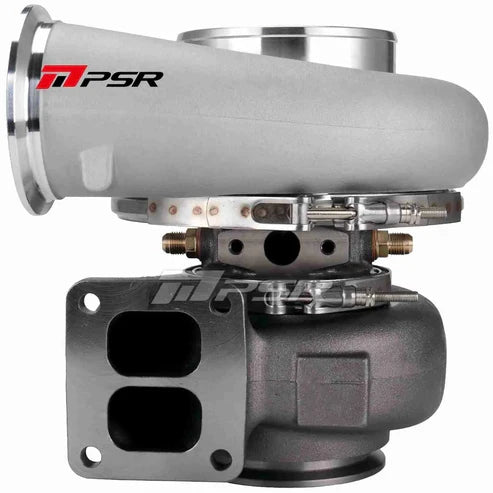

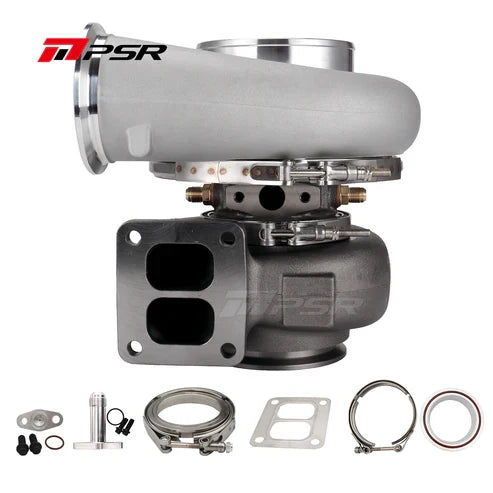

T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R

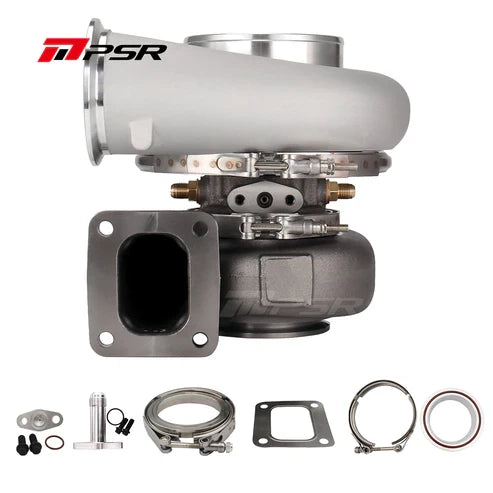

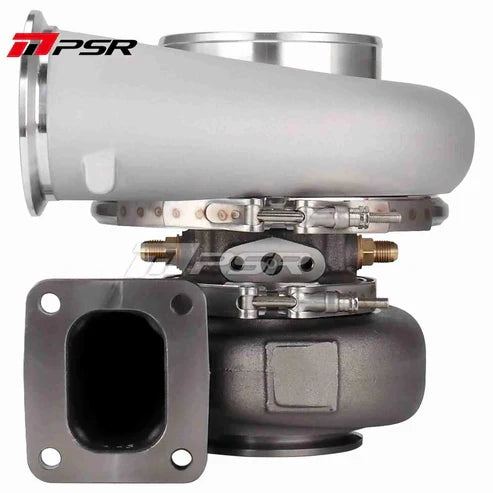

T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R

Pulsar Turbo Systems New Zealand

PSR Class Legal 6775G Dual Ball Bearing Turbocharger

Regular price: $2,136.70

Features:

PSR Class Legal Turbo with 67/98mm Compressor wheel
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
10 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
7 Turbine housing in option
Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
Oil Feed Fitting needs to be bought separately

Details:

Compressor Wheel: 67*98mm
Turbine Wheel: 82*75mm
Compressor Inlet: 5″ Hose
Compressor Outlet: 3″ V-Band
Water Ports: -6AN
Oil Feed: Flange Required (Recommended size: -4AN Std T4 Flange Non-Restricted)
Oil Drain: Angle 15°, -12AN (O-Ring sealed Flange Kit Incl’)

Turbine housing option:

T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R

Regular price: $2,136.70

Compressor Housing: Standard

Turbine Housing: T4 1.15A/R V-Band T4 Divided 1.01A/R V-Band T4 Divided 1.15A/R V-Band T4 Divided 1.28A/R V-Band 1.01A/R Dual V-Band 1.15A/R Dual V-Band 1.28A/R Dual V-Band Without Turbine Housing

Product variants

Quantity

Product Description

Features:

PSR Class Legal Turbo with 67/98mm Compressor wheel
Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
10 Blade G-Aero billet compressor wheel with extended tapered tip technology
9 Blade G-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
7 Turbine housing in option
Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
Oil Feed Fitting needs to be bought separately

Details:

Compressor Wheel: 67*98mm
Turbine Wheel: 82*75mm
Compressor Inlet: 5″ Hose
Compressor Outlet: 3″ V-Band
Water Ports: -6AN
Oil Feed: Flange Required (Recommended size: -4AN Std T4 Flange Non-Restricted)
Oil Drain: Angle 15°, -12AN (O-Ring sealed Flange Kit Incl’)

Turbine housing option:

T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R
