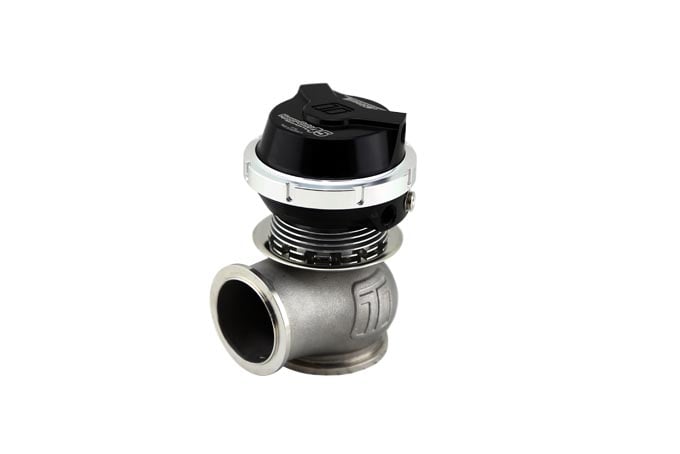

Turbosmart GenV WG45M HyperGate45 Motorsport 14psi Black

The GenV HyperGate45 Motorsport external wastegate is a specifically designed for endurance or high heat applications where excessive heat is being generated for sustained periods of time.

A larger heatsink is featured coupled with larger actuator spacing to provide maximum thermal threshold and heat transfer to minimise actuator temperature.

Our new wastegates are a direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8NPT ports, and are provided with the full range of springs.

Flow and Thermal Performance
Our new range of wastegates out-flow all competitors thanks to our world-leading engineering and simulation abilities.
Thermal performance has been improved drastically compared to our nearest rival, and all wastegates feature liquid cooling ports for further thermal performance if required

Product features summary:
Modular interchangeable actuators
Independently orientated actuator base
New strap type V band clamps
Increased thermal and flow performance, and;
A diaphragm design that offers linear travel; regardless of spring, pressure and valve positioning, while improving response.
Integrated water cooling ports (if required)

Included in box:
Turbosmart Gen V Wastegate
Valve seat
Inlet V-band clamp
Inlet weld flange
Outlet V-band clamp
Outlet weld flange
Collar tool
Complete Spring kit (3PSI to 26PSI)
